Sideview ▏Mini ▏S Digital strip

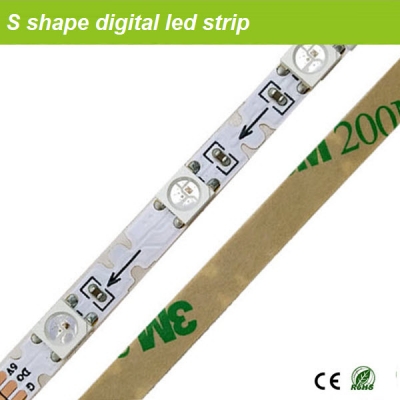

Mini S shape digital strip

    1. Input Voltage DC5V, Single signal (data) control.

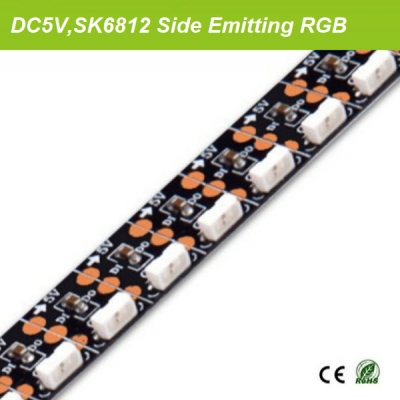

    2. WS2812B/SK6812 IC embedded in SMD3535 RGB LED.
    3. 48leds/m,20.8mm/0.82"intervals cutting point.
    4. 5mm S shape PCB,each led is programmable.
    5. White PCB/Black PCB available.
    6. Both ends wired with 150mm/5.9" 20Awg wire and JST 3Pin male/female connector
    7. 3M adhensive tape stick on the back of non-waterproof version.
    8. Controller System:SD controller , DMX controller , Artnet.

    Product Model
    M/N Size/mm IP Rate Voltage Led type IC type Leds/m Pixel/m Luminous/m Angle Watt/m
    GES48RGB2812BA 1000*5*2.5   IP21 DC5V SMD3535RGB  low heat led WS2812B
    Built-in
    48 48 R:56lm
     G:120lm B:38lm
     Mix W:160lm
    120 6.0w
    GES48RGB6812A 1000*5*2.5   IP21 DC5V SMD3535RGB  low heat led SK6812
    Built-in
    48 48 R:56lm
    G:120lm B:38lm
     Mix W:160lm
    120 6.0w
