Sideview | Mini | Digital Tape

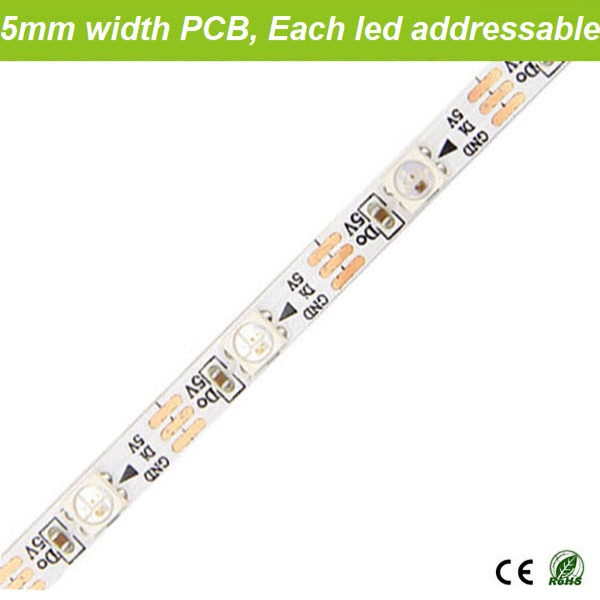

digital strips 5mm PCB

    1. Input Voltage DC5V, Single signal (data) control.
    2. SK6812/WS2812B IC embedded in SMD5050 RGB LED,each led is programmable.
    3. 30leds/m,33.3mm/1.31" intervals cutting point
    4. 5mm width mini PCB.
    5. White PCB/Black PCB available.
    6. Both ends wired with 150mm/5.9" 20Awg wire and JST 3Pin male/female connector
    7. 3M adhensive tape stick on the back of non-waterproof version.
    8. Controller System:SD controller , DMX controller , Artnet.

    Product Model
    M/N L*W*H(mm) IP Rate Voltage Led type IC type Leds/m Pixel/m Luminous/m Angle Watt/m
    GE30RGB6812A5mm 2000*5*2.5   IP21 DC5V SMD5050RGB  low heat led SK6812
    Built-in
    30 30 R:36lm
    G:75lm B:24lm
     Mix W:105lm
    120º 4.0w
    GE30RGB2812BA5mm 2000*5*2.5   IP21 DC5V SMD5050RGB  low heat led WS2812B
    Built-in
    30 30 R:36m
    G:75lm B:24lm
     Mix W:105lm
    120º 4.0w
