1. Input Voltage DC12V/24V
2. 60leds/m,SMD3014 Sideview LED
3. Power comsuption 6.0Watt/M
4. Luminuous Flux 420lum/m to 450lum/m
5.3000k,4200k,6000k available,CRI80+
6. 8mm width 3OZ Double-layer flexible white PCB.
7. 50mm/1.97" intervals cutting point with 12V led strip.
8. 100mm/3.94" intervals cutting point with 24V led strip.
9. Both ends wired with 15cm 2*Awg18 Red/black wire.
10. Standard length is 5meter/16.4‘ per reel, support customs length.
11. 3M adhesive tape backing
12. IP21/IP65/IP67 available.
13. CE,Rohs certificate,3years warranty
| Product Model | ||||||||||
| M/N | Size/mm | IP Rate | Voltage | Led type | Leds/m | CRI | CCT | Luminous/m | Angle | Watt/m |
| GE60W3014ASV GE60W3014BSV GE60W3014CSV |
5000*8*3.0 5000*8*3.5 5000*10*4.0 |
IP21 IP65 IP67 |
DC12V DC24V |
SMD3014 Sideview |
60 | 80 | 3000K 4200k 6200K |
WW:420lm NW:430lm W:450lm |
120 | 6.0W |
| GE84W3014ASV GE84W3014BSV GE84W3014CSV |
5000*10*3.0 5000*10*3.5 5000*12*4.0 |
IP21 IP65 IP67 |
DC24V | SMD3014 Sideview |
84 | 80 | 3000K 4200k 6200K |
WW:585lm NW:600lm W:630lm |
120 | 8.4W |

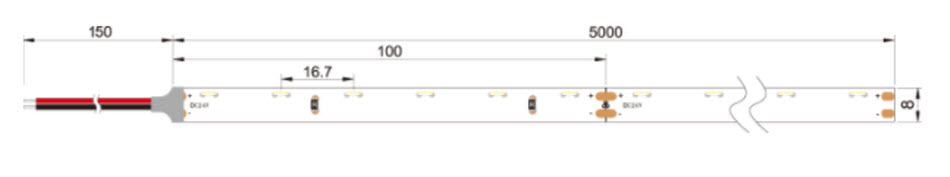

Dimension
