1. Input Voltage DC24V

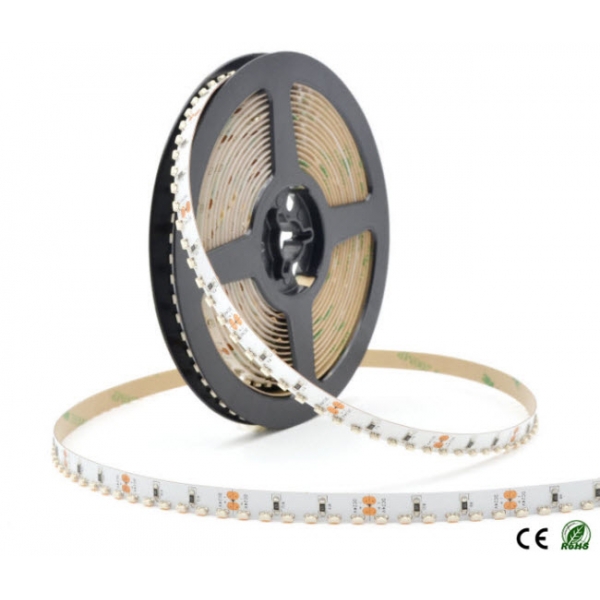

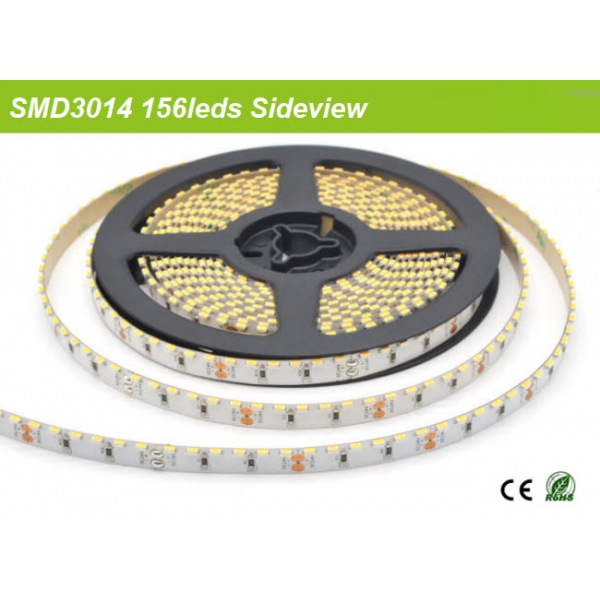

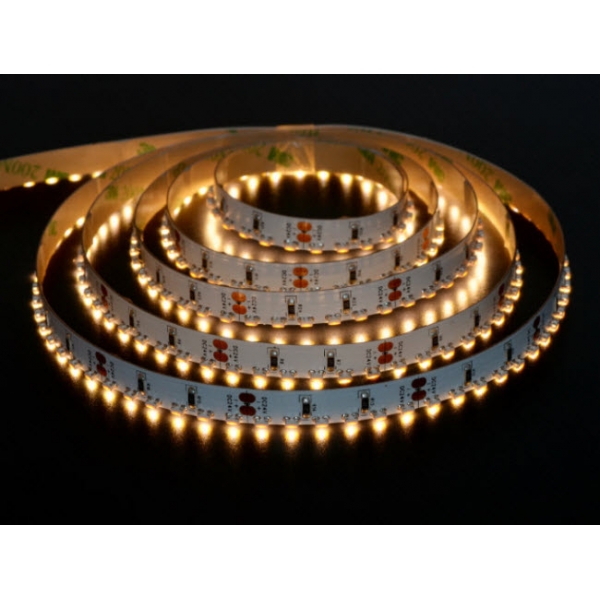

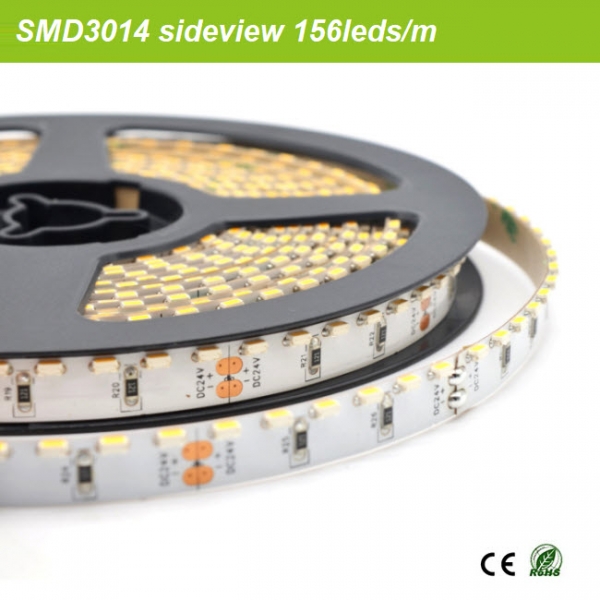

2. 156leds/m ,SMD3014 sideview LED
3. Power comsuption 15.8Watt/M
4. Luminuous Flux 1000lum/m to 1120lum/m
5. 3000k,4200k,6000k available,CRI 80+
6. 8mm width 3OZ Double-layer flexible white PCB.
7. 25mm/0.98" intervals cutting point with 12V led strip.
8. 50mm/1.97" intervals cutting point with 24V led strip.
9. Both ends wired with 15cm 2*Awg18 Red/black wire.
10. Standard length is 5meter/16.4‘ per reel, support customs length.
11. 3M adhesive tape backing
12. IP21/IP65/IP67available.
13. CE,Rohs certificate,3years warranty
| Product Model | ||||||||||
| M/N | Size/mm | IP Rate | Voltage | Led type | Leds/m | CRI | CCT | Luminous/m | Angle | Watt/m |
| GE156W3014ASV GE156W3014BSV GE156W3014CSV |
5000*10*3.0 5000*10*3.5 5000*12*4.0 |
IP21 IP65 IP67 |
DC24V | SMD3014 Sideview |
156 | 80 | 3000K 4200k 6200K |
WW:1000lm NW:1080lm W:1120lm |
120 | 15.8W |
Dimension
