Digital Addressable Led Strip Wiring
Time:2019-03-10
Views:2988
Firstly Digital addressable led strip can be divided into single signal type and double signal type. In other words, single-line
and double-line types.Single-line Digital led strips‘ data are controllable, Double -line Digital led strips‘Clock and data are
controllable. In addition, The latest WS2813/WS2815/GS8208 .Breakpoint signal continuous transmission addressable also
belongs to the single-line type. Its wiring as below:
and double-line types.Single-line Digital led strips‘ data are controllable, Double -line Digital led strips‘Clock and data are
controllable. In addition, The latest WS2813/WS2815/GS8208 .Breakpoint signal continuous transmission addressable also
belongs to the single-line type. Its wiring as below:
1.Single-line addressable led strip (Egg: WS2811,WS2812B,SK6812,SM16703,UCS1903,UCS2903 etc)
Remark: DC5/12/24V all addressable led strip can connect as below:
(GND and data wire to controller and Feed power toled strip with individual 5V/12V/24V power)
Remark: DC5/12/24V all addressable led strip can connect as below:
(GND and data wire to controller and Feed power toled strip with individual 5V/12V/24V power)

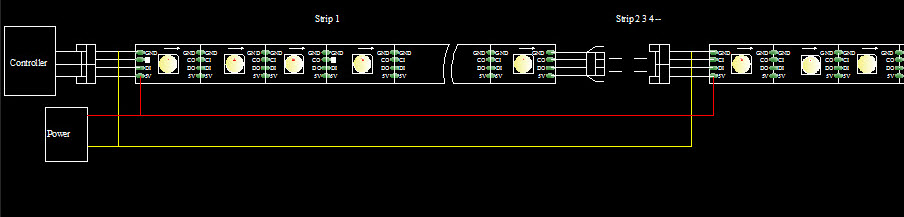

2. Double-line addressable led strip (Egg:LPD8806,WS2801,GE8822,APA102,SK9822 etc)
Remark: led strips‘ GND,Data,CLK wiring to controller, Feed power to led strip with individual power
Remark: led strips‘ GND,Data,CLK wiring to controller, Feed power to led strip with individual power
3.Break_Point signal continuous transmission led strip as below (Egg: GS8208,GE8808,WS2813,WS2815,WS2818etc)
Remark: BI signal can be empty or wiring to controller‘ GND. this wiring also is suitable to WS2813 led strip.
Only Feed DC 5V Power to WS2813 led strip
Hope our working do some help for you, if you have any question, Please Contact: info@gree-leds.com
Remark: BI signal can be empty or wiring to controller‘ GND. this wiring also is suitable to WS2813 led strip.
Only Feed DC 5V Power to WS2813 led strip
Hope our working do some help for you, if you have any question, Please Contact: info@gree-leds.com
