WS IC embedded led

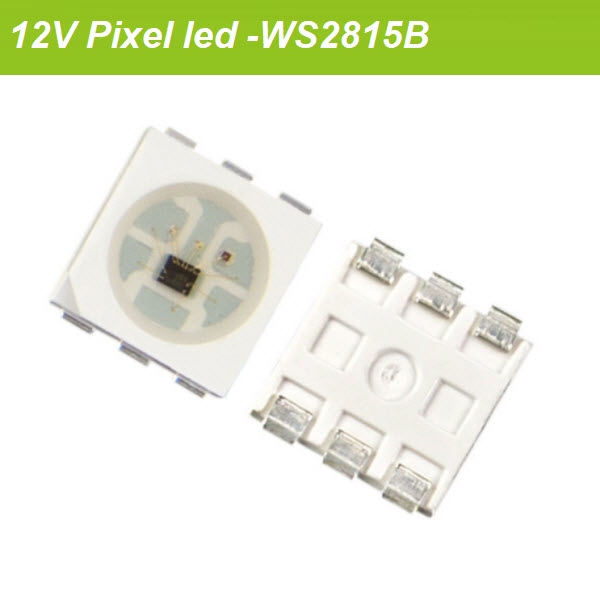

12V Pixel led WS2815B

    ●The control circuit and RGB chips are integrated in one SMD5050 package
    as one pixel,Built in various of function units.
    ●Adopt led chips in series design,Default current 10mA,Improve energy efficiency.
    ●12V single pixel addressable,Improve Voltage-drop Issue.
    ●It have backup data to prevent signal interrupt.(Break-Point resume function)
    ●The PWM Scanning Frequency up to 4khz
    ●Each color 8Bits,256 Gray scale, 256*256*256=16777216 true color display.
    ●Data transmission rate up to 800kbps
    ●The pixel cascades number is not less than 1024 pixels at 30 frame per second.
    ●The data transmit base on SPI Communication protocol

    Model WS2815B Input Voltage DC12V
    Physical Package SMD5050-PLCC6 Emitting color RGB
    PWM Scanning Rate 4khz Power consumption 0.15w
    Data transmission Rate 800kbps Qty/Reel 1k or 4.5k

    Details Please download datasheet.





    Welcome your inquiry, we will reply you within 24 hours.

    *

    *

    *

    *
