WS IC embedded led

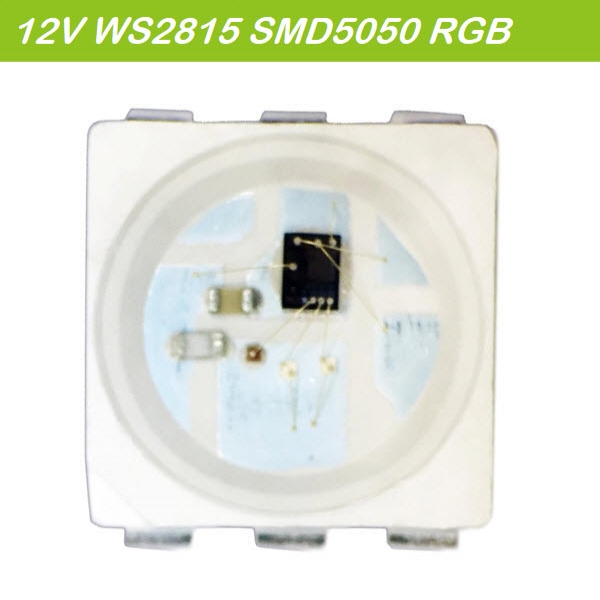

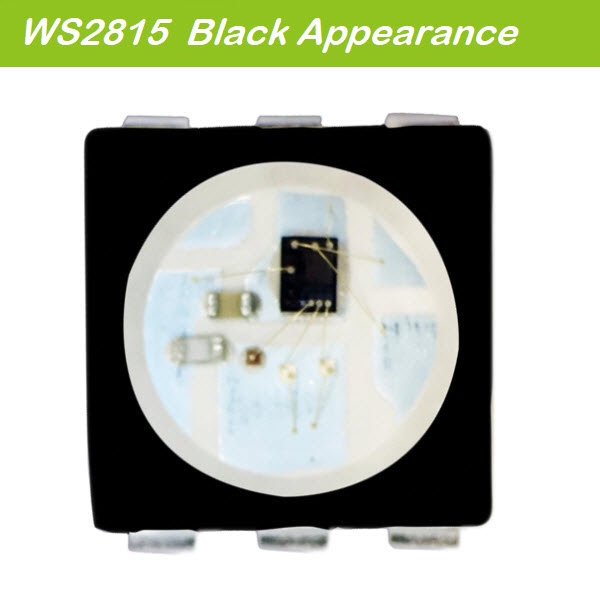

12V Individually addressable WS2815 led

WS2815 is a addressable Programmable component that Control circuit and RGB chip are integrated in a PLCC5050 led.
The data transfer protocol use single NZR communication mode. intelligent digital port data latch and signal reshaping
amplification drive circuit are intergrated in control unit which also have a precision internal oscillator and a 12V voltage
programmable constant current control part.signal break-point continuous transmission. Any pixels failure won‘t affect
signal transfer and total emitting effect.

    1. Input Voltage: DC12V, SMD5050, RGB color,WS2819IC Protocol
    2. RGB Dice and Micro control circuit are embedded in a PLCC5050 led.
    3. Built in signal reshaping circuilt, electric reset circuit and power lost rest circuit.
    4. 256 Grey level for each color, 16777216 Full color display.
    5. Scan Frequency 2KHZ, Once Refresh Rate reach 30fps , Then the cascade number is not less than1024Pixels
    6. 800Kbps data transmission speed.
    7. Break-point continuously transmission function.

    Product Model
    M/N Input Voltage IC type Led type Color Wave length(nm) Luminous/led  Angle Watt/led Package
    WS2815B DC12V    WS2819    Built-In SMD5050
    6Pins
    RGB R:620-630
    G:515-525
    B:465-475
     R: 1.0-1.5lm
    G:3.0-4.0lm
      B:0.5-1.0m
    120 0.2w 1K/Reel
     Remark: WS2815 led with Breakpoint continuous transmission function when one led is ruined, 12V individually addressable.
