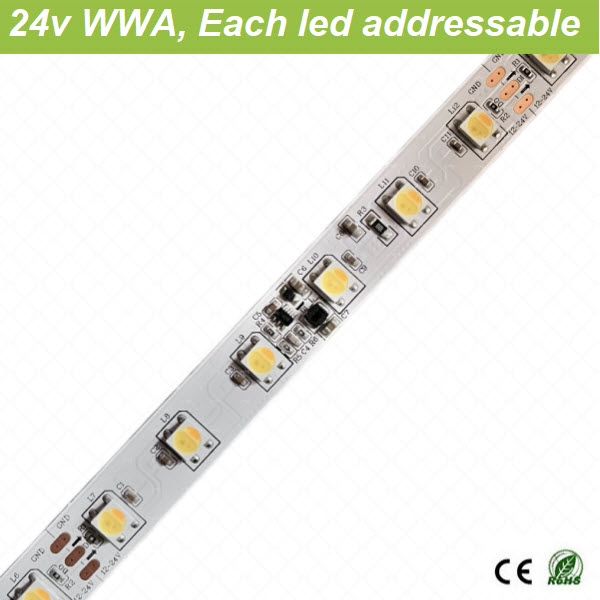

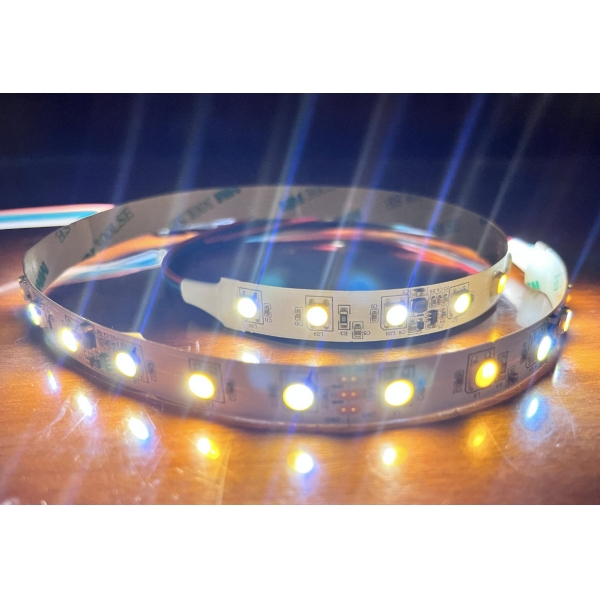

1. New design,The circuit adopts a reliable scheme.
2. Single ended power input,10M without voltage-drop.
3. DC12-24V Input,Each led addressable.
4. SK6812 IC embedded in SMD5050 WWA LED. 1LED=1Pixel.
5. 60pixel/m,100mm/3.937"intervals cutting point.
6. Max 14.0W/M, WWA Color,IP20/IP65/IP67/IP68 available.
7. White PCB/Black PCB available，The PCB thickness is 3oz.
8. 3M adhensive tape stick on the back of non-waterproof version.
9. Controller System：SD controller,DMX controller,Artnet.
10.DC36V customized version available.

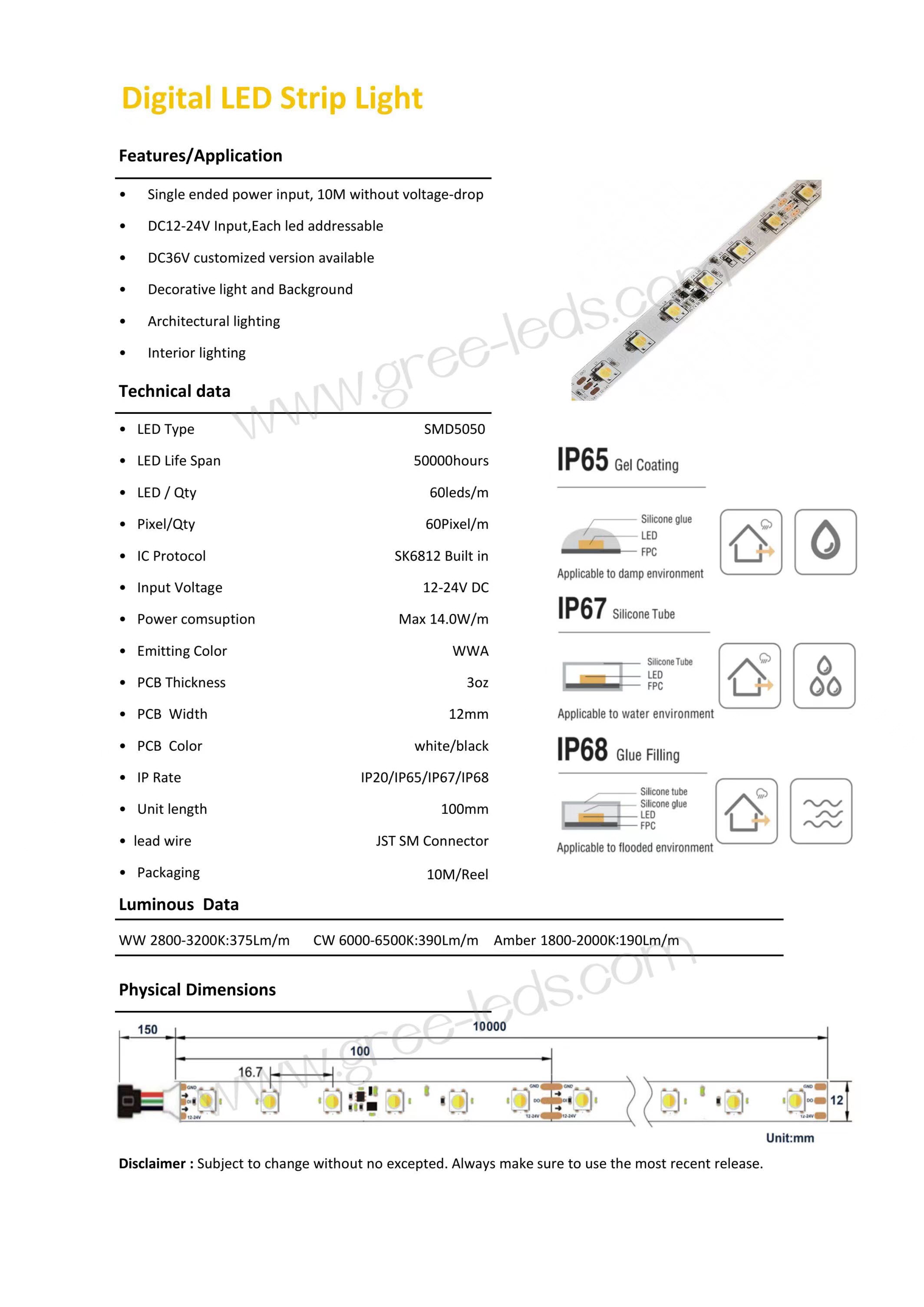

| M/N | size/mm L*W*H |
IP Rate | Voltage | Led Typa | IC Protocol | Leds/m | Pixel/m | Luminous/m | View Angle | Watt/m |
| GE60WWA6812A24N | 10000*12*2.0 | IP20 | DC12-24V | SMD5050 | SK6812 | 60 | 60 | WW 375Lm/m | 120 | Max 14.0w/m |
| GE60WWA6812B24N | 5000*12*3.0 | IP65 | DC12-24V | SMD5050 | SK6812 | 60 | 60 | CW 390Lm/m | 120 | Max 14.0w/m |
| GE60WWA6812C24N | 10000*14*3.5 | IP67 | DC12-24V | SMD5050 | SK6812 | 60 | 60 | Amber 190Lm/m | 120 | Max 14.0w/m |
| GE60WWA6812D24N | 5000*14*4.0 | IP68 | DC12-24V | SMD5050 | SK6812 | 60 | 60 | 120 | Max 14.0w/m |
