1. Input Voltage DC24V
2. 72leds/m,120leds/m,SMD5630 LED
3. Power comsuption 17.2 Watt/M,24.0Watt/M.
4. 72leds/m Luminuous Flux 1393lum/m to 1512lum/m
5. 120leds/m Luminuous Flux 1920lum/m to 2130lum/m
6. CRI90+ is standard CRI, CRI95+ customizable.
7. 2700k,3000k,4200k,6000k available,support customs CCT.
8. 10mm width 3OZ Double-layer flexible white PCB.

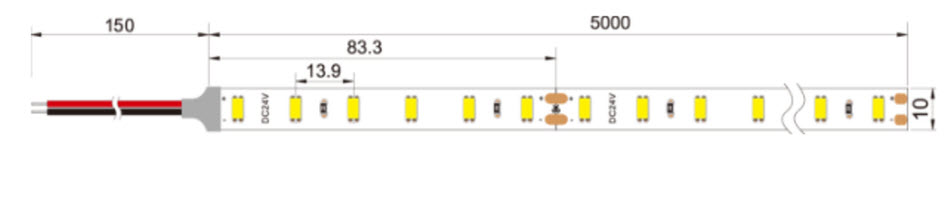

9. 83.3mm/3.28" intervals cutting point with 72leds/m led strip.

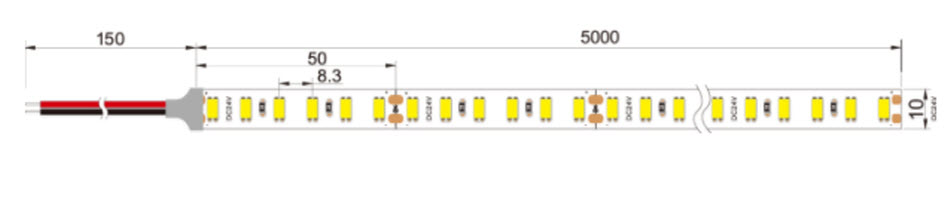

10. 50mm/1.97" intervals cutting point with 120leds/m led strip.
11. Both ends wired with 15cm 2*Awg18 Red/black wire.
12. Standard length is 5meter/16.4‘ per reel, support customs length.
13. 3M adhesive tape backing
14. IP21/IP65/IP67/IP68 available.
15. CE,Rohs certificate,3years warranty
| Product Model | ||||||||||
| M/N | Size/mm | IP Rate | Voltage | Led type | Leds/m | CRI | CCT | Luminous/m | Angle | Watt/m |
| GE72W5630A GE72W5630B GE72W5630C GE72W5630D |
5000*10*3.0 5000*10*3.5 5000*12*4.0 5000*12*4.0 |
IP21 IP65 IP67 IP68 |
DC24V | SMD5630 | 72 | 90 | 2700K 3000K 4200k 6200K |
WW:1393lm NW:1492lm W:1512lm |
120 | 17.2W |
| GE120W5630A GE120W5630B GE120W5630C GE120W5630D |
5000*10*3.0 5000*10*3.5 5000*12*4.0 5000*12*4.0 |
IP21 IP65 IP67 IP68 |
DC24V | SMD5630 | 120 | 90 | 2700K 3000K 4200k 6200K |
WW:1920lm NW:2000lm W:2130lm |
120 | 24.0W |
| Remark: support customs CCT | ||||||||||
