1. Input Voltage DC12V/24V

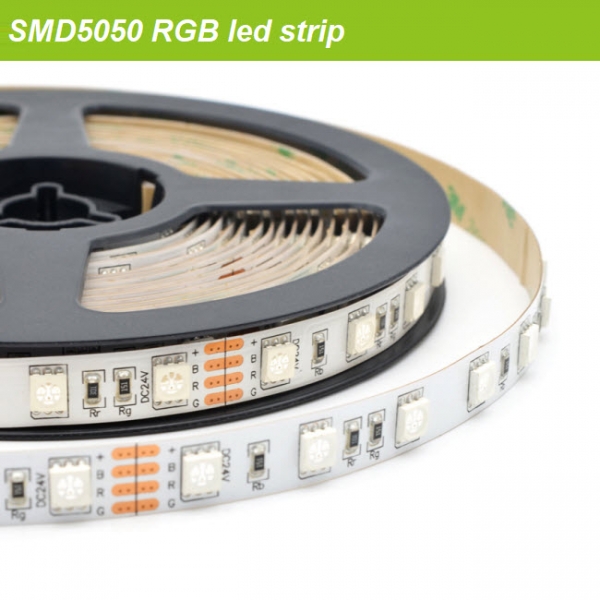

2. 60leds/m ,SMD5050 LED RGB
3. Power comsuption Max 14.4 Watt/M
4. Luminuous Flux R 100lum/m ,G 270lum/m, B 75lum/m, Mix white 380lum/m
5. 10mm width 3OZ Double-layer flexible white PCB.
6. 50mm/1.97" intervals cutting point with 12V led strip.
7. 100mm/3.94" intervals cutting point with 24V led strip.
8. Both ends wired with 15cm 4*Awg20 wire.
9. Standard length is 5meter/16.4‘ per reel, support customs length.
10. 3M adhesive tape backing
11. IP21/IP65/IP67/IP68 available.
12. CE,Rohs certificate,3years warranty

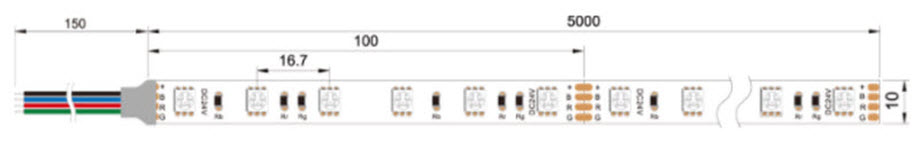

Dimension
.jpg)
| Product Model | ||||||||||
| M/N | Size/mm | IP Rate | Voltage | Led type | Leds/m | CRI | Color | Luminous/m | Angle | Watt/m |
| GE60RGB5050A GE60RGB5050B GE60RGB5050C GE60RGB5050D |
5000*10*3.0 5000*10*3.5 5000*12*4.0 5000*12*4.0 |
IP21 IP65 IP67 IP68 |
DC12V DC24V |
SMD5050 | 60 | Null | RGB | R: 100lm G: 270lm B:75lm Mix white 380lm |
120 | 14.4W |
| Remark: 8mm,12mm width PCB available | ||||||||||
| GE72RGB5050A GE72RGB5050B GE72RGB5050C GE72RGB5050D |
5000*8*3.0 5000*8*3.5 5000*10*4.0 5000*10*4.0 |
IP21 IP65 IP67 IP68 |
DC24V | SMD5050 | 72 | Null | RGB | R: 120lm G: 325lm B:90lm Mix white 432lm |
120 | 17.0W |
| Remark: 96leds/m (12mm PCB),120leds/m (20mm) PCB available. support customs led QTY. | ||||||||||
