1. Input Voltage DC12V/24V

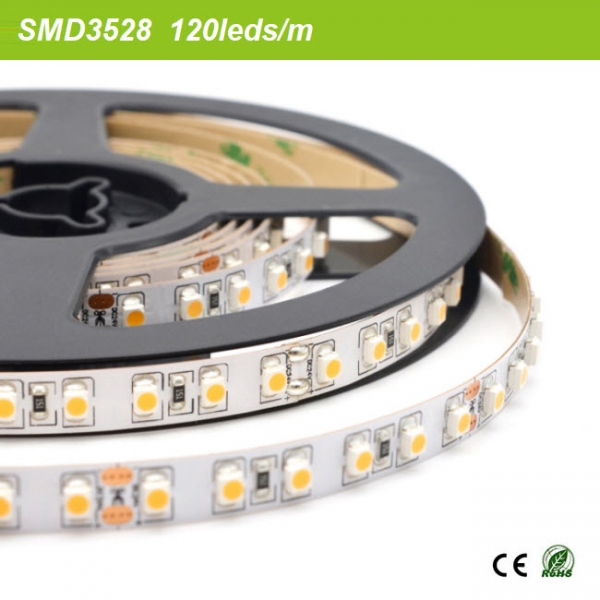

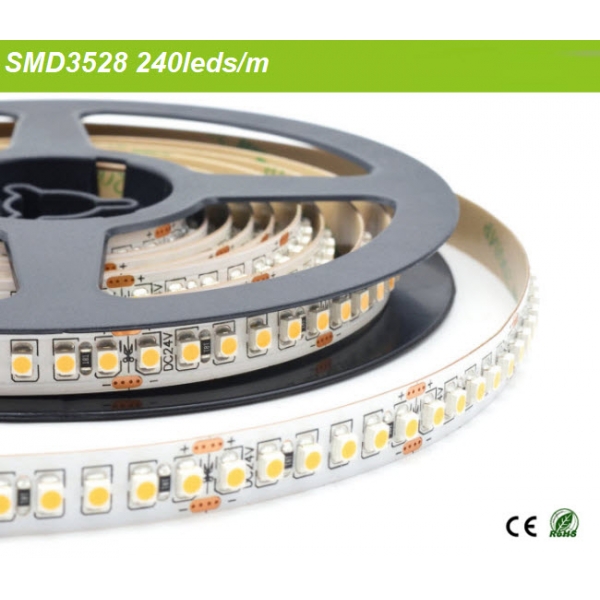

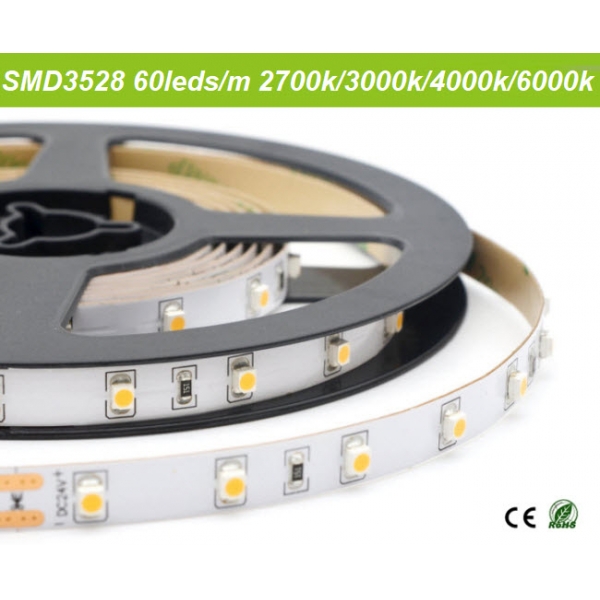

2. 60leds/m,120leds/m ,240leds/m,360leds/m(three line),SMD3528 LED
3. Power comsuption 4.8Watt/m,9.6Watt/m,19.2Watt/M,28.8Watt/m
4. Luminuous Flux 6.2lum/led to 6.5lum/led
5. CRI 80+/CRI+90 available, CRI95+ customizable.
6. 2700k,3000k,4200k,6000k available,support customs CCT.
7. 8mm/10mm/10mm/20mm width 3OZ Double-layer flexible white PCB.
8. 50mm/1.97",25mm/0.98",12.5mm/0.49",25mm/0.98" intervals cutting point with 12V led strip.
9. 100mm/3.93",50mm/1.97",25mm/0.98",50mm/1.97" intervals cutting point with 24V led strip.
10. Both ends wired with 15cm 2*Awg18 Red/black wire.
11. Standard length is 5meter/16.4‘ per reel, support customs length.
12. 3M adhesive tape backing
13. IP21/IP65/IP67/IP68 available.
14. CE,Rohs certificate,3years warranty
| Product Model | ||||||||||
| M/N | Size/mm | IP Rate | Voltage | Led type | Leds/m | CRI | CCT | Luminous/led | Angle | Watt/m |
| GE60W3528A GE120W3528A GE240W3528A GE360W3528A |
5000*8*3.0 5000*8*3.0 5000*10*3.0 5000*20*3.0 |
IP21 IP21 IP21 IP21 |
DC12V DC24V |
SMD3528 | 60 120 240 360 |
90 | 2700K 3000K 4200k 6200K |
WW:6.2lm NW:6.4lm W:6.5lm |
120 | 4.8w 9.6w 19.2w 28.8w |
| Remark: IP65,IP67,IP68 available, support customs CCT | ||||||||||
