1. Input Voltage DC12V/24V
2. 60leds/m,SMD2835 LED
3. Power comsuption 12.0Watt/M
4. Luminuous Flux 880lum/m to 956lum/m
5. CRI 80+/CRI90+ available, CRI95+ customizable.
6. 2700k,3000k,4200k,6000k available,support customs CCT.
7. 8mm width 3OZ Double-layer flexible white PCB.
8. 50mm/1.97" intervals cutting point with 12V led strip.
9. 100mm/3.94" intervals cutting point with 24V led strip.
10. Both ends wired with 15cm 2*Awg18 Red/black wire.
11. Standard length is 5meter/16.4‘ per reel, support customs length.
12. 3M adhesive tape backing
13. IP21/IP65/IP67/IP68 available.
14. CE,Rohs certificate,3years warranty

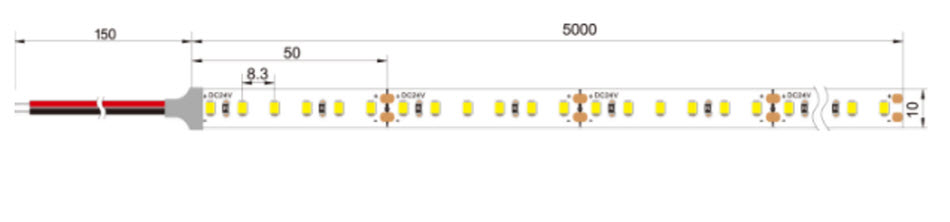

Dimension
| Product Model | ||||||||||
| M/N | Size/mm | IP Rate | Voltage | Led type | Leds/m | CRI | CCT | Luminous/m | Angle | Watt/m |
| GE60W2835A GE60W2835B GE60W2835C GE60W2835D |
5000*8*3.0 5000*8*3.5 5000*10*4.0 5000*10*4.0 |
IP21 IP65 IP67 IP68 |
DC12V DC24V |
SMD2835 | 60 | 80 90 |
2700K 3000K 4200k 6200K |
WW:880lm NW:944lm W:956lm |
120 | 12W |
| Remark:10mm width PCB available, support customs CCT | ||||||||||
Dimension
