1. Input Voltage 24V

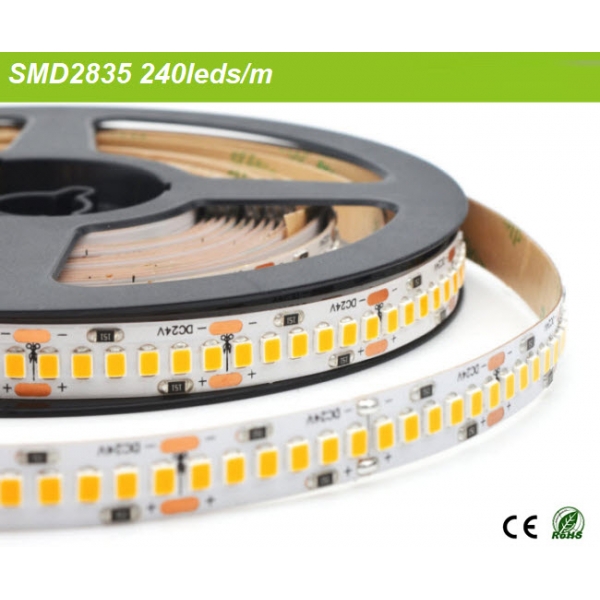

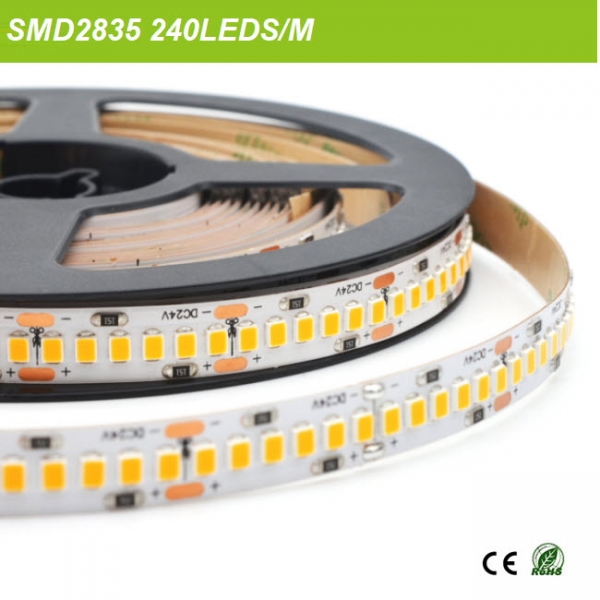

2. 240leds/m ,SMD2835 LED
3. Power comsuption 24.0Watt/M
4. Luminuous Flux 1624lum/m to 1800lum/m
5. CRI 80+/CRI90+ available, CRI95+ customizable.
6. 2700k,3000k,4200k,6000k available,support customs CCT.
7. 10mm width 3OZ Double-layer flexible white PCB.
8. 25mm/0.98" intervals cutting point。
9. Both ends wired with 15cm 2*Awg18 Red/black wire.
10. Standard length is 5meter/16.4‘ per reel, support customs length.
11. 3M adhesive tape backing
12. IP21/IP65/IP67/IP68 available.
13. CE,Rohs certificate,3years warranty

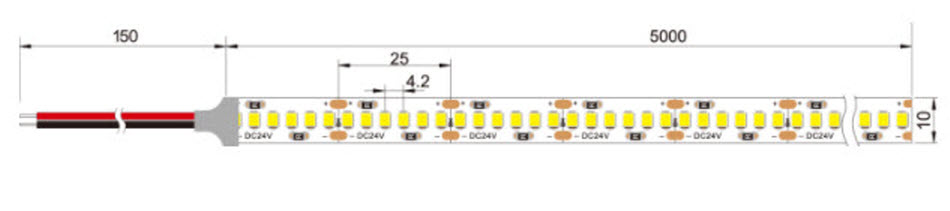

Dimension
.jpg)
| Product Model | ||||||||||
| M/N | Size/mm | IP Rate | Voltage | Led type | Leds/m | CRI | CCT | Luminous/m | Angle | Watt/m |
| GE240W2835A GE240W2835B GE240W2835C GE240W2835D |
5000*10*3.0 5000*10*3.5 5000*12*4.0 5000*12*4.0 |
IP21 IP65 IP67 IP68 |
DC24V | SMD2835 | 240 | 80 90 |
2700K 3000K 4200k 6200K |
WW:1800lm NW:1740lm W:1624lm |
120 | 24.0W |
| Remark: 140leds/m(10mm PCB), 144leds(15mm PCB),168leds(6mm PCB), 168leds/m(20mm PCB),204leds/m(12mm PCB) Available | ||||||||||
Dimension
