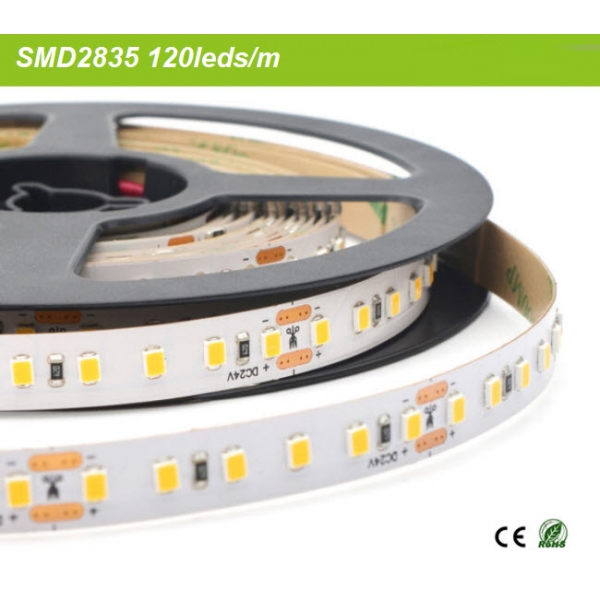

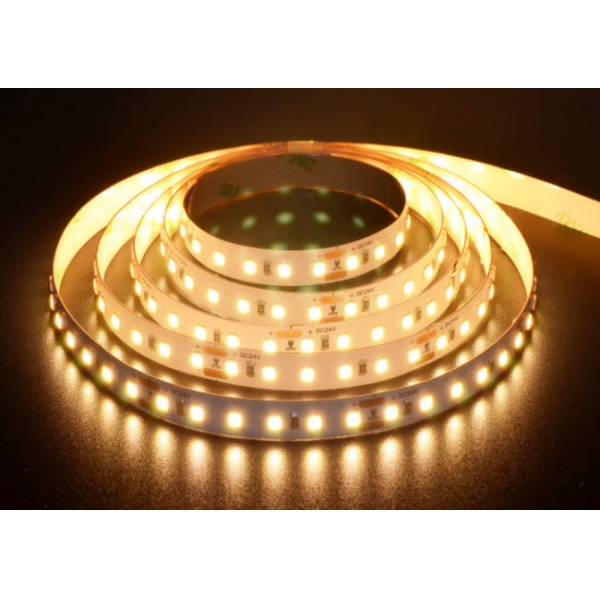

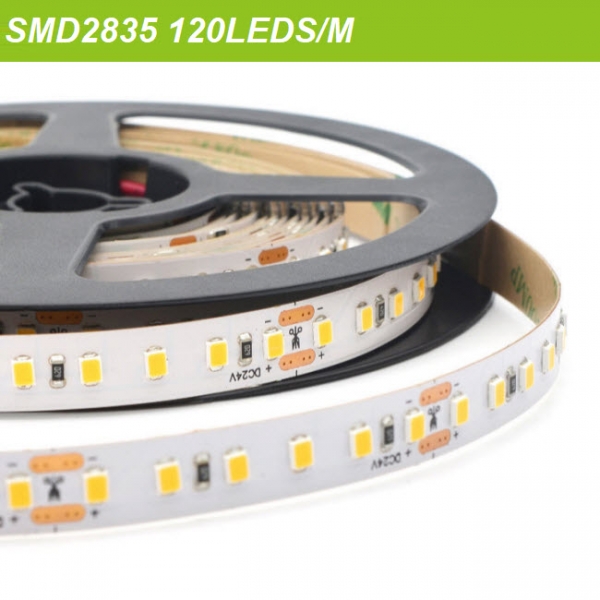

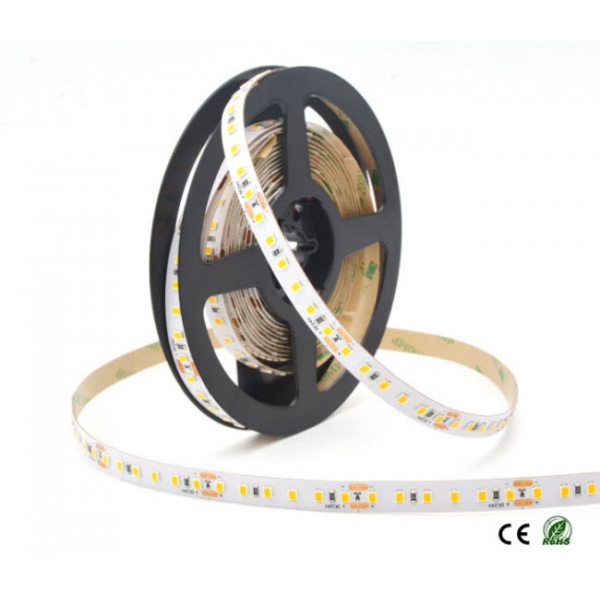

SMD2835 led tape

1m 120leds SMD2835 stripe

    1. Input Voltage DC12V/24V
    2. 120leds/m ,SMD2835 LED
    3. Power comsuption 17.2Watt/M
    4. Luminuous Flux 1374lum/m to 1506lum/m
    5. CRI 80+/CRI+90 available, CRI95+ customizable.
    6. 2700k,3000k,4200k,6000k available,support customs CCT.
    7.  8mm width 3OZ Double-layer flexible white PCB.
    8. 25mm/0.98" intervals cutting point with 12V led strip.
    9. 50mm/1.97" intervals cutting point with 24V led strip.
    10.  Both ends wired with 15cm 2*Awg18 Red/black wire.
    11. Standard length is 5meter/16.4‘ per reel, support customs length.
    12.  3M adhesive tape backing
    13.  IP21/IP65/IP67/IP68 available.
    14.  CE,Rohs certificate,3years warranty

    Product Model
    M/N Size/mm IP Rate Voltage Led type Leds/m CRI CCT Luminous/m Angle Watt/m
    GE120W2835A
    GE120W2835B
    GE120W2835C
    GE120W2835D
     5000*8*3.0    5000*8*3.5     5000*10*4.0
     5000*10*4.0
     IP21
     IP65
     IP67
     IP68
    DC12V
    DC24V
    SMD2835 120 80
    90
    2700K 3000K
    4200k
    6200K
    WW:1374lm
    NW:1470lm
    W:1506lm
    120 17.2W
         Remark: 5mm,6mm, 10mm PCB available, support customs CCT

    Dimension


    File Name : Format: Size: Download:
    Welcome your inquiry, we will reply you within 24 hours.

    *

    *

    *

    *
