1. Input Voltage DC24V
2. 420leds/m,SMD2216 LED
3. Power comsuption 24.0Watt/M
4. Luminuous Flux 1554lum/m to 1596lum/m
5. CRI90+ is standard CRI, CRI95+ customizable.
6. 2700k,3000k,4200k,6000k available,support customs CCT.
7. 10mm width 3OZ Double-layer flexible white PCB.
8. 14.29mm/0.562" intervals cutting point。
9. Both ends wired with 15cm 2*Awg18 Red/black wire.
10. Standard length is 5meter/16.4‘ per reel, support customs length.
11. 3M adhesive tape backing
12. IP21/IP65/IP67/IP68 available.
13. CE,Rohs certificate,3years warranty

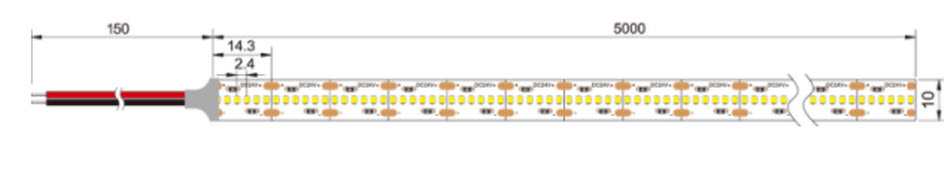

Dimension
| Product Model | ||||||||||
| M/N | Size/mm | IP Rate | Voltage | Led type | Leds/m | CRI | CCT | Luminous/m | Angle | Watt/m |
| GE420W2216A GE420W2216B GE420W2216C GE420W2216D |
5000*10*3.0 5000*10*3.5 5000*12*4.0 5000*12*4.0 |
IP21 IP65 IP67 IP68 |
DC24V | SMD2216 | 420 | 90 | 2700K 3000K 4200k 6200K |
WW:1554lm NW:1575lm W:1596lm |
120 | 24.0w |
Dimension
