| Product Model | |||||||||||||||||||
| M/N | Chip Brand | Led type | VF(V) | CCT | CRI(RA) | Lumen(60mA) | Angle | Watt/led | Package | ||||||||||

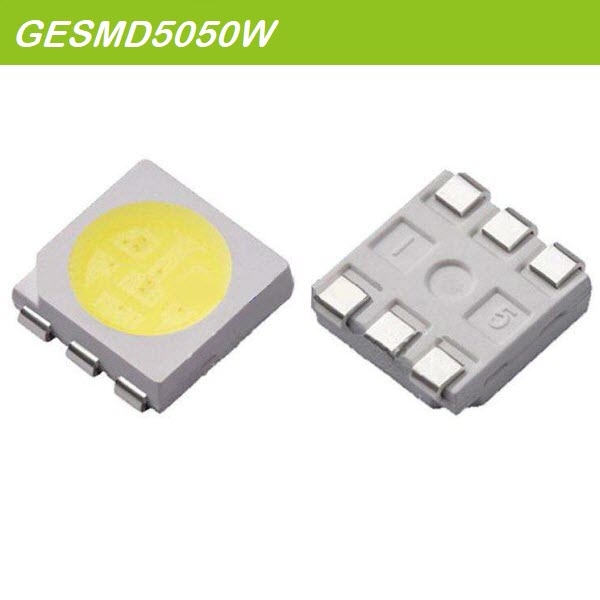

| GESMD5050W | Epistar | SMD5050 | 2.8-3.4V | 2400-2700K 2800-3200K 4000-4500K 5500-6000K 6000-6500K |
80+ 90+ 95+ 97+ |
20-24lum/led | 120 | 0.20w | 1K/Reel | ||||||||||
Remark: Ra95/Ra97 led need customization. More higher CRI then more lower brightness, Color standard: 3step Mcadam or USA energy star
|
|||||||||||||||||||
| GESMD5050R GESMD5050G GESMD5050B GESMD5050Y GESMD5050IR GESMD5050UV |
Epistar | SMD5050 | 1.8-2.2V 2.8-3.4V 2.8-3.4V 1.8-2.2V 1.3-1.5V 3.3-3.4V 3.4-3.6V |
Red Green Blue Yellow Infrared Purple Ultraviolet |
620-630nm 515-525nm 465-475nm 588-595nm 850nm/940nm 395-405nm UVA360/380nm |
2.5lum@60mA 5lum@60mA 2lum@60mA 2.5lum@60mA 20mW@30mA 100mW@60mA 80mW@60mA |
120 | 0.20w | 1K/Reel | ||||||||||
