SK Chip intergration led

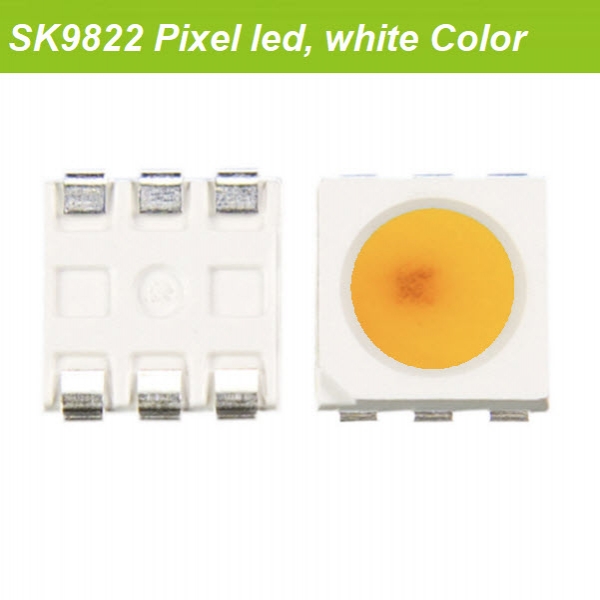

SK9822_White color_Pixel led

SK9822 is an intelligent programmable LED light source which
including three-channel  drive and control circuit
and
light-emitting electric circuit. Signal decoding Module,
data buffer, built-in constant current circuit and RC oscillator
are intergrated in control chip; 256-level PWM gray adjustment
and 32-Level brightness adjustment.

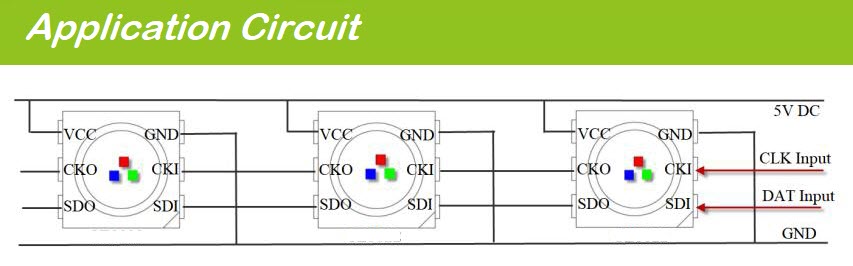

Dual signal transmission
mode, Data Signal and CLK signal are adopted to synchronize
the output of the series chips.

    1. Input Voltage: DC5V, SMD5050 , RGB color, SK9822 Protocol
    2. led Dice and Micro control circuit are embedded in a PLCC5050 led.
    3. Dimmable brightness 32 level  and 256 PWM gray adjustable for each color
    5. Three-way constant current drive, with signal self-detection function
    6. Serial Input Data Frequency Max 30MHZ
    7. Dual-wire data transmission, built-in oscillation support uninterrupted PWM output, can maintain static picture


    Product Model
    M/N Input Voltage IC type Led type Color CCT(K)     Luminous/led        @Full bright Angle Watt/led Package
    SK9822-W DC5V    SK9822     Built-In SMD5050
    6Pins
    white WW:2800-3200
    NW:4000-4500
    W:6000-6500
     WW: 16-18lm
    NW:17-19lm
    W:18-20m
    120 0.2w 1K/Reel
