SK Chip intergration led

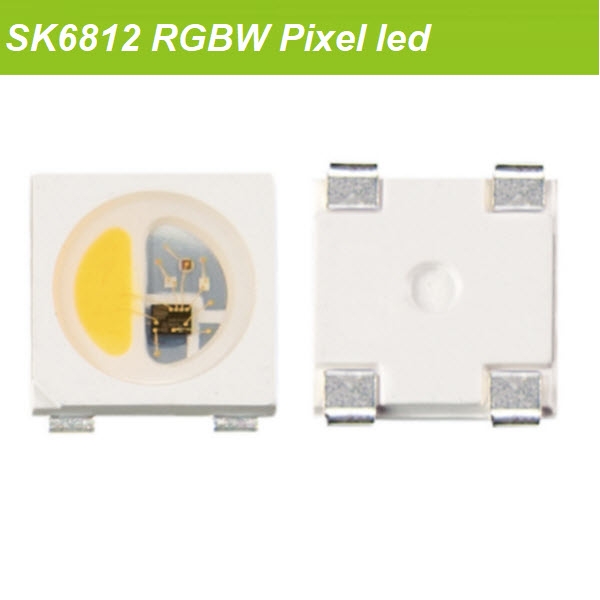

RGBW_RGBY_SK6812 Chip Built in

SK6812 RGBW/RGBY is a addressable Programmable component that Control circuit and Four chips are integrated
in a PLCC5050 led.
The data transfer protocol use single NZR communication mode. intelligent digital port data latch
and signal reshaping
amplification drive circuit are intergrated in control unit which also have a precision internal oscillator
and a 12V voltage
programmable constant current control part.

    1. Input Voltage: DC5V, SMD5050, RGBW/RGBY color, SM16703IC Protocol
    2. Dice and Micro control circuit are embedded in a PLCC5050 led.
    3. Built in signal reshaping circuilt, electric reset circuit and power lost rest circuit.
    4. Once fresh rate reach 30fps, Then the cascade number is not less than 1024Pixels
    5. 800Kbps data transmission speed.

    Product Model
    M/N Input Voltage IC type Led type Color Wave length(nm) Luminous/led  Angle Watt/led Package
    SK6812RGBW DC5V      SM16703    Built-In SMD5050
    4Pins
    RGBW R:620-630
    G:515-530
     B:460-470
         WW:3000K      NW:4000K
     W:6000K
      R: 1.0-1.5lm
     G:3.0-3.5lm
      B:0.5-1.0m
     W:3.5-4.0lm
    120 0.2w 1K/Reel
    SK6812RGBY DC5V       SM16703       Built-In SMD5050
    4Pins
    RGBY R:620-630
    G:515-530
    B:460-470
        Y:585-595
      R: 1.0-1.5lm
     G:3.0-3.5lm
      B:0.5-1.0m
     Y:1.0-1.5lm
    120 0.2w 1K/Reel
