Mini Individually addressable led

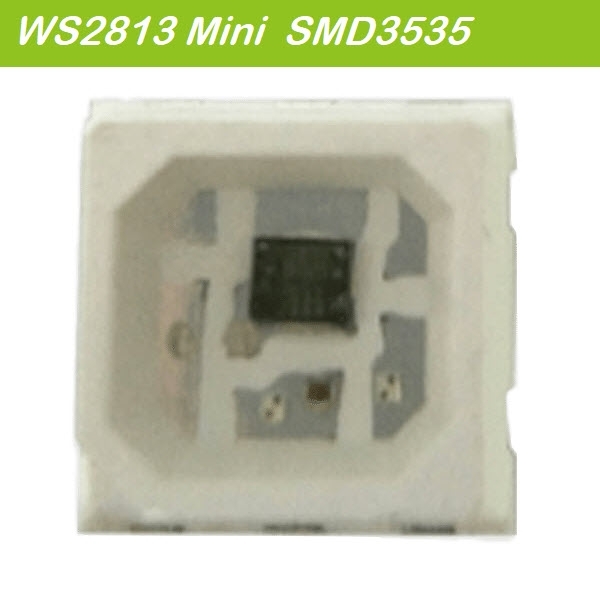

WS2813-3535 Mini led

WS2813 is a addressable Programmable component that Control circuit and RGB chip are integrated in a SMD3535 led.
The data transfer protocol use single NZR communication mode. intelligent digital port data latch and signal reshaping
amplification drive circuit are intergrated in control unit which also have a precision internal oscillator and a 12V voltage
programmable constant current control part.it is with signal break-point continuous transmission function. Any pixels
failure
won‘t affect signal transfer and total emitting effect.
    1. Input Voltage: DC5V, RGB color,WS2818A IC Protocol
    2. RGB Dice and Micro control circuit are embedded in a SMD3535 led.
    3. Built in signal reshaping circuilt, electric reset circuit and power lost rest circuit.
    4. 256 Grey level for each color, 16777216 Full color display.
    5. Scan Frequency 2KHZ,  Once Refresh Rate reach 30fps , Then the cascade number is not less than1024Pixels
    6. 800Kbps data transmission speed.
    7. Break-point continuously transmission function.

    Product Model
    M/N Input Voltage IC type Led type Color Wave length(nm) Luminous/led  Angle Watt/led Package
    WS2813-3535 DC5V WS2818A    Built-In SMD3535
    6Pins
    RGB R:620-630
    G:515-525
    B:465-475
     R: 1.0-1.5lm
    G:3.0-4.0lm
      B:0.5-1.0m
    120 0.2w 900pcs/Reel


    File Name : Format: Size: Download:
