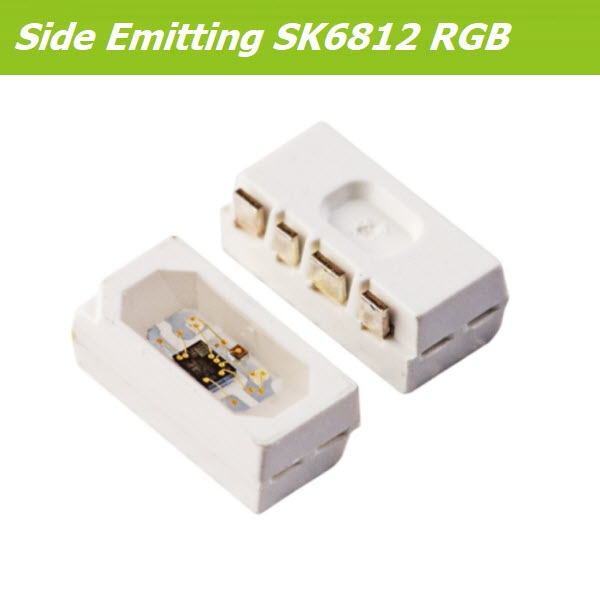

●The control circuit and RGB chips are integrated in one SMD4020 side package as one pixel
●DC5V,Default current 12mA per color,0.2W power consumption
●The PWM Scanning Frequency 1.0khz
●8bit per color,256 Gray scale, 256*256*256=16777216 true color display.
●Support data rate up to 800kbps
●The pixel cascades number is not less than 1024 pixels at 30 frame per second.
●The data transmit base on SPI Communication protocol
●Upgrade led bracket to enhance PCB solder.
●Upgrade led bracket to enhance PCB solder.
| M/N | Package | Volt | Emitting Color | Power | Fpwm | Date Rate | Qty/Reel |
| SK6812V12-Side | SMD4020 | 5V | side emitting RGB | 0.2w | 1khz | 800kbps | 1.5K |
Details Please download SK6812 Side emiting SMD4020 datasheet.
