Mini Individually addressable led

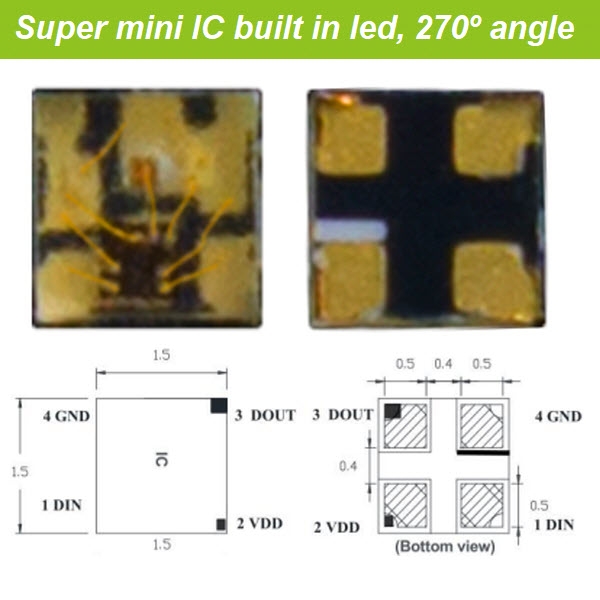

SMD1515 Mini intelligent led

    1.SMD internal integrated high quality external control line serial cascade constant current IC;
    2. Control circuit and the RGB chip integrated in SMD1515 mini components, to form a
    complete external control pixel, make the color mix uniformity and consistency;
    3. Built-in data shaping circuit, a pixel signal is received after wave shaping and output
    waveform distortion will not guarantee a line;
    4. Gray level adjusting circuit (256 level gray scale adjustable);
    5. Red drive special treatment, color balance;
    6. Single-line data transmission for unlimited cascade
    7. Plastic forward strengthening technology, the transmission distance between two points over 10M;

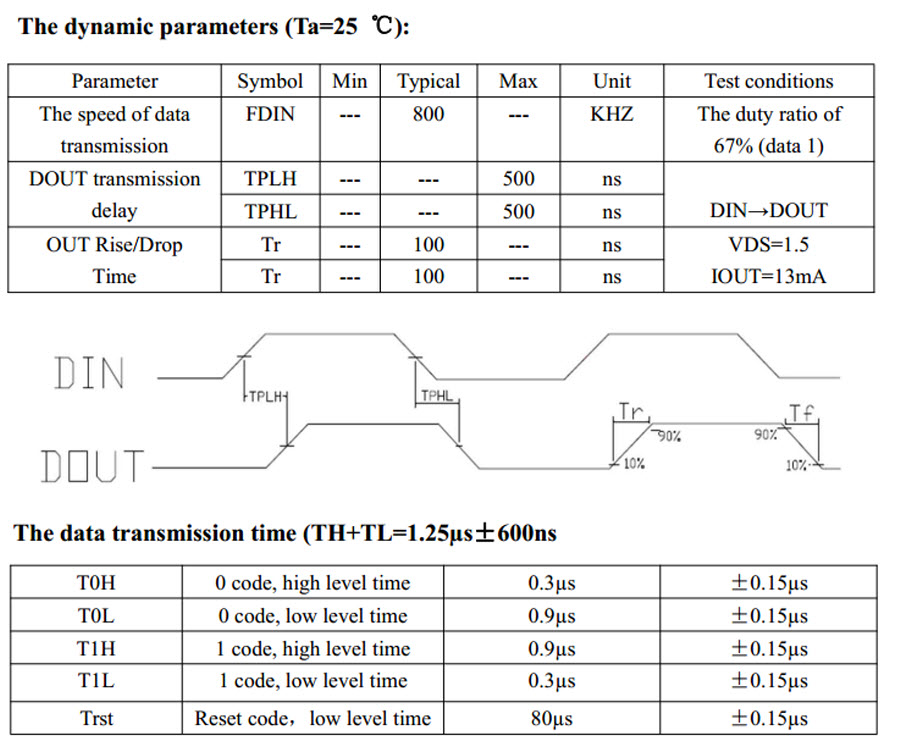

    8. Data transmission frequency can reach 800 Kbps, when the refresh rate of 30 frames
    per sec,the number of cascades is not less than 1024 points.
    9.5mA or 13mA verison are optional
    Product Model
    M/N Input Voltage IC type Led type Chip Color Wave length(nm) Luminous/led Angle Watt/led Package
    GE8812B1515     (5mA version) DC5V GE8812
    Built-in
    SMD1515
    4Pins
    Epistar   9mil*9mil RGB R:620-623
       G:517.5-520
       B:467.5-470
      R: 2.5-3.0lm
    G:5.0-6.0lm
       B:1.5-2.0lm
    270 0.1W  4000pcs/Reel
    GE8812C1515   (13mA version) DC5V GE8812
    Built-in
    SMD1515
    4Pins
    Epistar   9mil*9mil RGB R:620-623
       G:517.5-520
       B:467.5-470
     R: 2.0-2.5lm
    G:5.0-6.0lm
       B:1.5-2.0lm
    270 0.2w 4000pcs/Reel
    Remark: GE8812 IC Protocol is compatible with SK6812/WS2812B

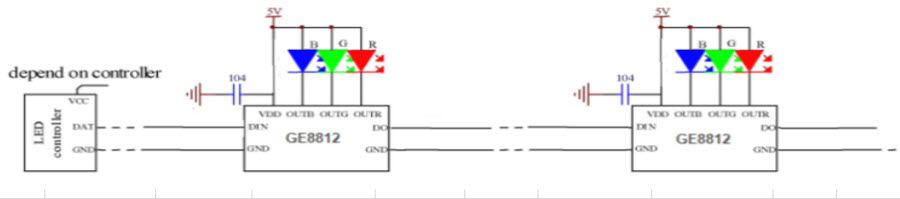

    Application circuit:
    File Name : Format: Size: Download:
    Welcome your inquiry, we will reply you within 24 hours.

    *

    *

    *

    *
