Mini Individually addressable led

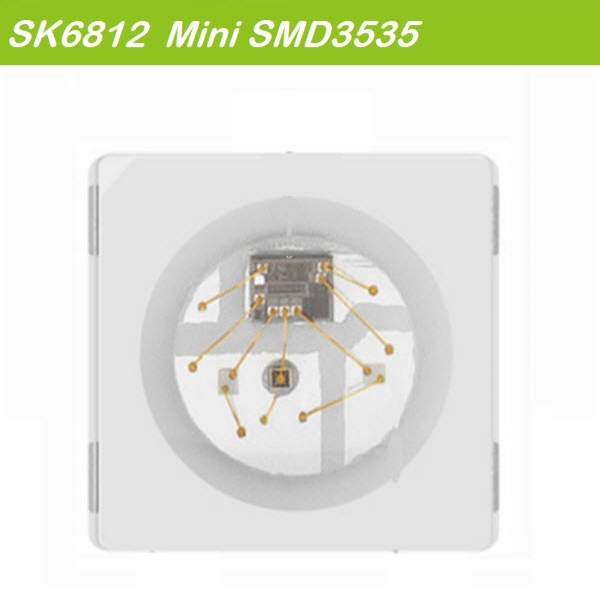

SK6812 SMD3535 Mini led

SK6812-3535 is a addressable Programmable component that Control circuit and RGB chip are integrated in a SMD3535 led.
The data transfer protocol use single NZR communication mode. intelligent digital port data latch and signal reshaping
amplification drive circuit are intergrated in control unit which also have a precision internal oscillator and a 12V voltage
programmable constant current control part.

    1. Input Voltage: DC5V, SMD3535, RGB color, SM16703IC Protocol
    2. RGB Dice and Micro control circuit are embedded in a PLCC3535 led.
    3. Built in signal reshaping circuilt, electric reset circuit and power lost rest circuit.
    4. 256 Grey level for each color, 16777216 Full color display.
    5. Once fresh rate reach 30fps, Then the cascade number is not less than 1024Pixels
    6. 800Kbps data transmission speed.
    7.0.1w type and 0.2w type availale

    Product Model
    M/N Input Voltage IC type Led type Color Wave length(nm) Luminous/led  Angle Watt/led Package
    SK6812-3535 DC5V     SM16703     Built-In SMD3535
    4Pins
    RGB R:620-630
    G:520-535
    B:460-475
       R: 0.2-0.5lm
      G:1.0-2.0lm
        B:0.2-0.5lm
    120 0.1w 1.5K/Reel
    SK6812-3535 DC5V      SM16703      Built-In SMD3535
    4Pins
    RGB R:620-630
    G:520-535
    B:460-475
       R: 1.0-1.5lm
      G:3.0-4.0lm
       B:0.5-1.0m
    120 0.2w 1.5K/Reel



    File Name : Format: Size: Download:
    Welcome your inquiry, we will reply you within 24 hours.

    *

    *

    *

    *
