1.SMD internal integrated high quality external control line serial cascade constant current IC;
2. Control circuit and the RGB chip integrated in SMD 2020 components, to form a
complete external control pixel, make the color mix uniformity and consistency;
3. Built-in data shaping circuit, a pixel signal is received after wave shaping and output
waveform distortion will not guarantee a line;
4. Gray level adjusting circuit (256 level gray scale adjustable);
5. Red drive special treatment, color balance;
6. Single-line data transmission for unlimited cascade
7. Plastic forward strengthening technology, the transmission distance between two points over 10M;
8. Data transmission frequency can reach 800 Kbps, when the refresh rate of 30 frames
per sec,the number of cascades is not less than 1024 points.
9. 5mA or 13mA verison are optional

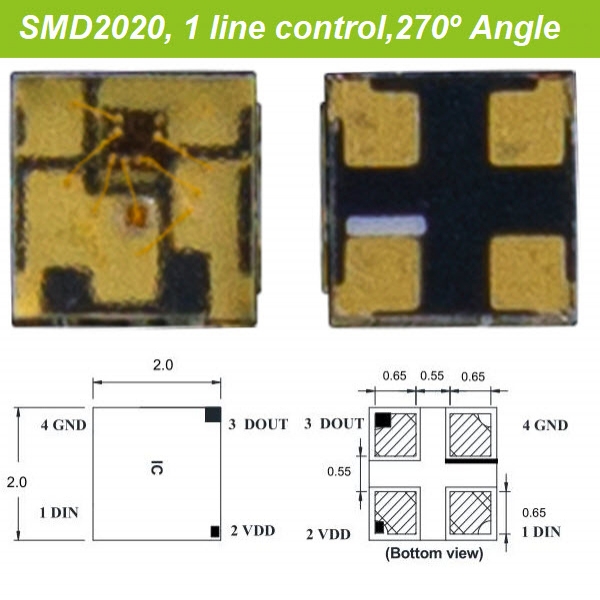

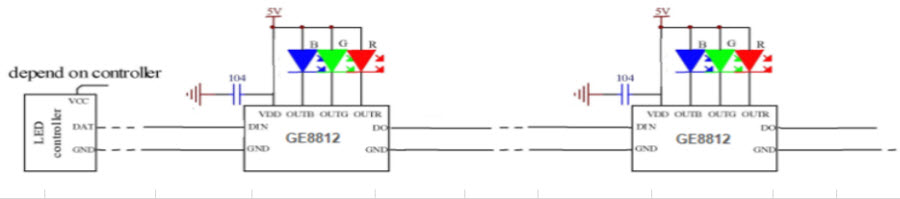

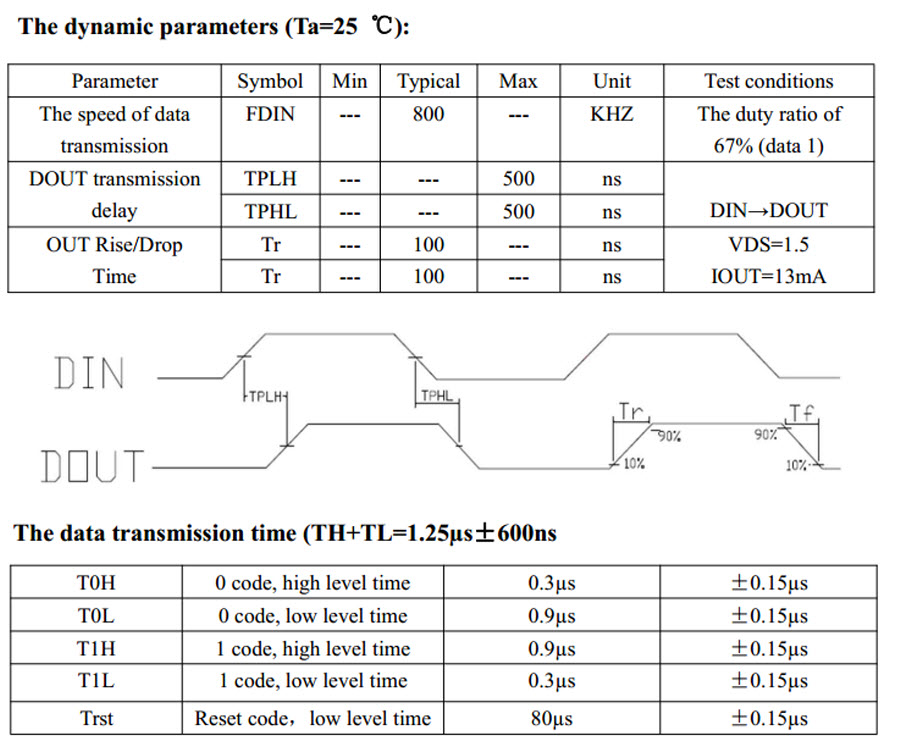

Application circuit:
| Product Model | ||||||||||
| M/N | Input Voltage | IC type | Led type | Chip | Color | Wave length(nm) | Luminous/led | Angle | Watt/led | Package |
| GE8812B2020 (5mA version) | DC5V | GE8812 Built-in |
SMD2020 4Pins |
Epistar 9mil*9mil | RGB | R:620-623 G:517.5-520 B:467.5-470 |
R: 2.5-3.0lm G:5.0-6.0lm B:1.5-2.0lm |
270 | 0.1W | 4000pcs/Reel |
| GE8812C2020 (13mA version) | DC5V | GE8812 Built-in |
SMD2020 4Pins |
Epistar 9mil*9mil | RGB | R:620-623 G:517.5-520 B:467.5-470 |
R: 2.0-2.5lm G:5.0-6.0lm B:1.5-2.0lm |
270 | 0.2w | 4000pcs/Reel |
| Remark: GE8812 IC Protocol is compatible with SK6812/WS2812B | ||||||||||
