Mini Individually addressable led

APA102_Mini addressable led

APA102 is an intelligent programmable LED light source which
including. three-channel (RGB) drive and control circuit
and
light-emitting electric circuit. Signal decoding Module,
data buffer, built-in constant current circuit and RC oscillator
are intergrated in control chip; 256-level PWM gray adjustment
and 32-Level brightness adjustment.

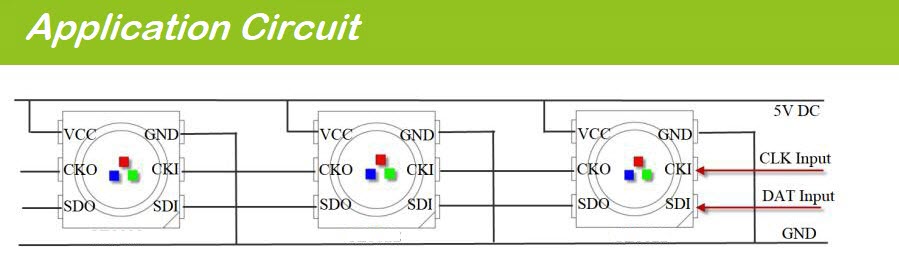

Dual signal transmission
mode, Data Signal and CLK signal are adopted to synchronize
the output of the series chips.

    1. Input Voltage: DC5V, SMD2020 , RGB color, APA102/SK9822 Protocol

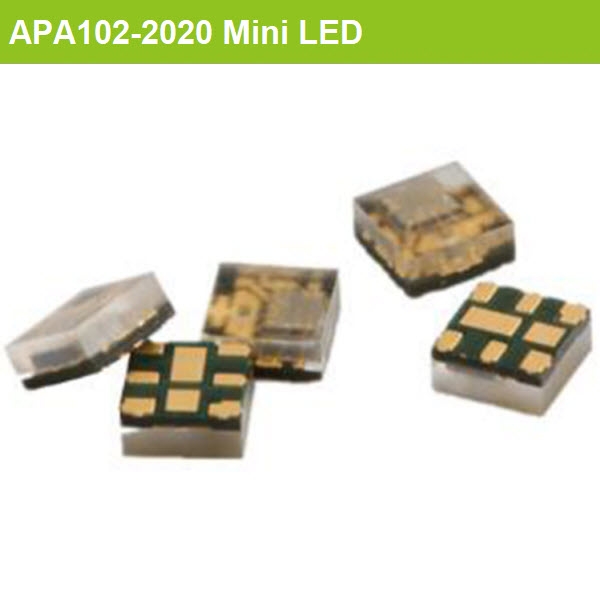

    2. RGB Dice and Micro control circuit are embedded in a SMD2020 led.
    3. Dimmable brightness 32 level  and 256 PWM gray adjustable for each color
    5. Three-way constant current drive, with signal self-detection function
    6. Serial Input Data Frequency Max 30MHZ
    7. Dual-wire data transmission, built-in oscillation support uninterrupted PWM output, can maintain static picture


    Product Model
    M/N Input Voltage IC type Led type Color Wave length(nm) Luminous/led  Angle Watt/led Package
    APA102-2020 DC5V     APA102    Built-In SMD2020
    6Pins
    RGB R:620-630
    G:520-535
    B:460-475
     R: 1.0-1.5lm
    G:3.0-4.0lm
     B:0.5-1.0m

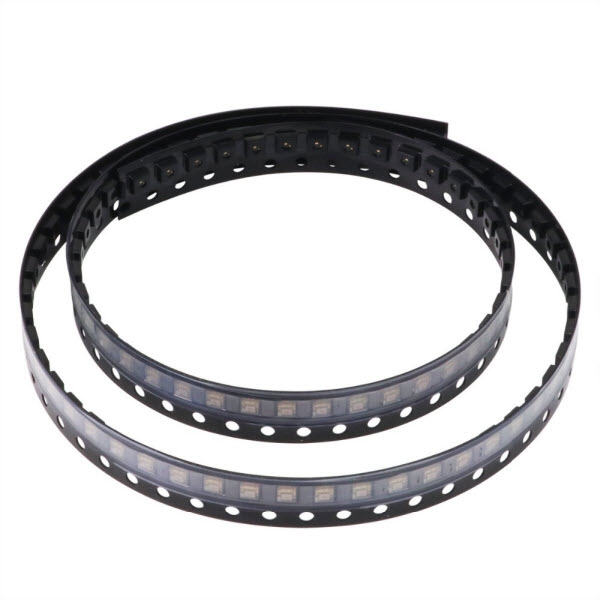

    270 0.2w 3K/Reel
    SK9822-2020 DC5V      SK9822       Built-In SMD2020
    6Pins
    RGB R:620-630
    G:520-535
    B:460-475
      R: 1.0-1.5lm
     G:3.0-4.0lm
      B:0.5-1.0m
    270 0.2w 3K/Reel



    Welcome your inquiry, we will reply you within 24 hours.

    *

    *

    *

    *
