1.SMD internal integrated high quality external control line serial cascade constant current IC;
2. Control circuit and the RGB chip integrated in SMD 3020 components, to form a
complete external control pixel, make the color mix uniformity and consistency;
3. Built-in data shaping circuit, a pixel signal is received after wave shaping and output
waveform distortion will not guarantee a line;
4. Gray level adjusting circuit (256 level gray scale adjustable);
5. Red drive special treatment, color balance;
6. Single-line data transmission for unlimited cascade
7. Plastic forward strengthening technology, the transmission distance between two points over 10M;

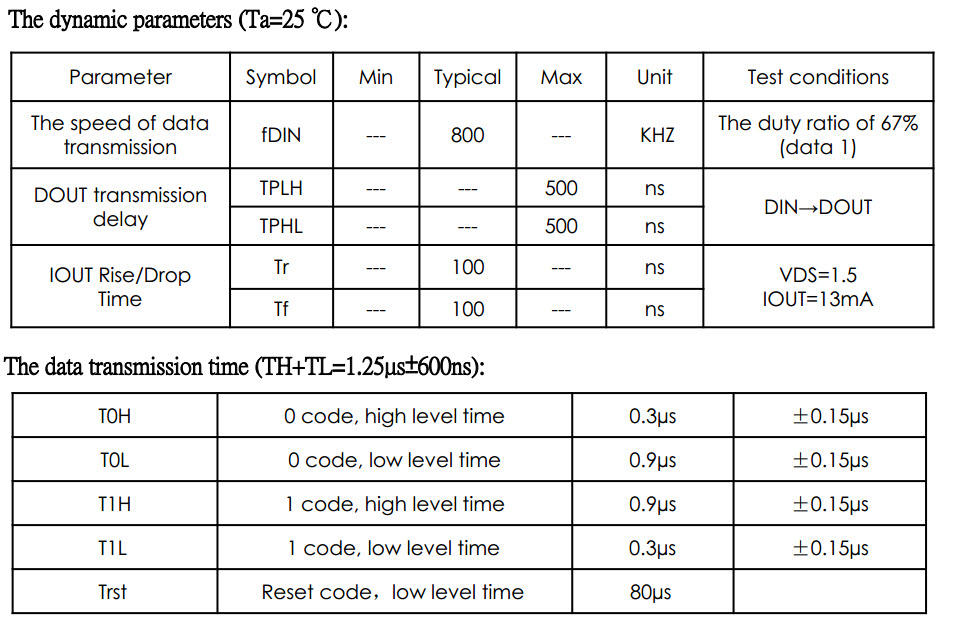

8. Data transmission frequency can reach 800 Kbps, when the refresh rate of 30 frames
per sec,the number of cascades is not less than 1024 points.
Product Model | ||||||||||
M/N | Input Voltage | IC type | Led type | Chip | Color | Wave length(nm) | Luminous/led | Angle | Watt/led | Package |

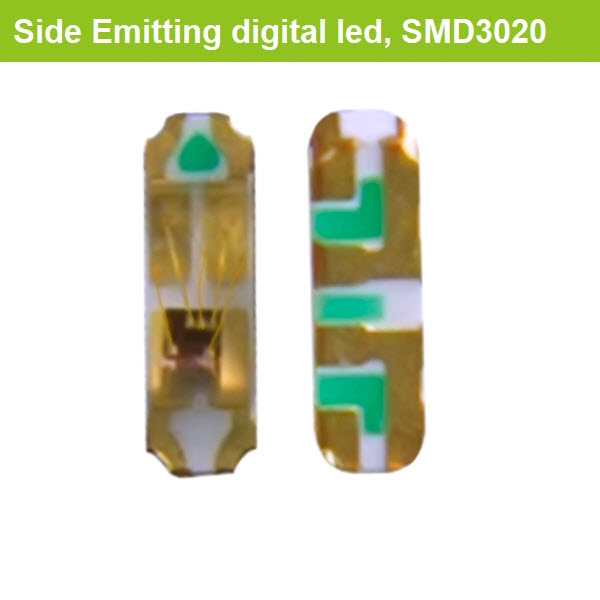

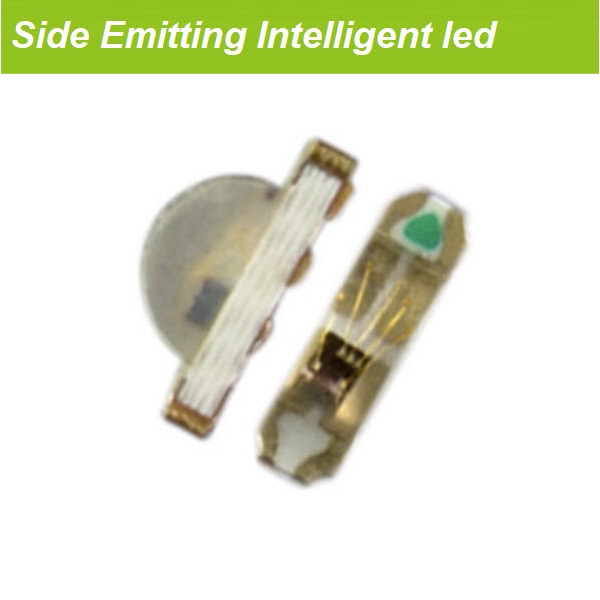

GE8812B3020 side Emitting | DC5V | GE8812 Built-in |
SMD3020 4Pins |
Epistar 9mil*9mil | RGB | R:620-623 G:517.5-520 B:467.5-470 |
R: 2.5-3.0lm G:5.0-6.0lm B:1.5-2.0lm |
120 | 0.2W | 3000pcs/Reel |
