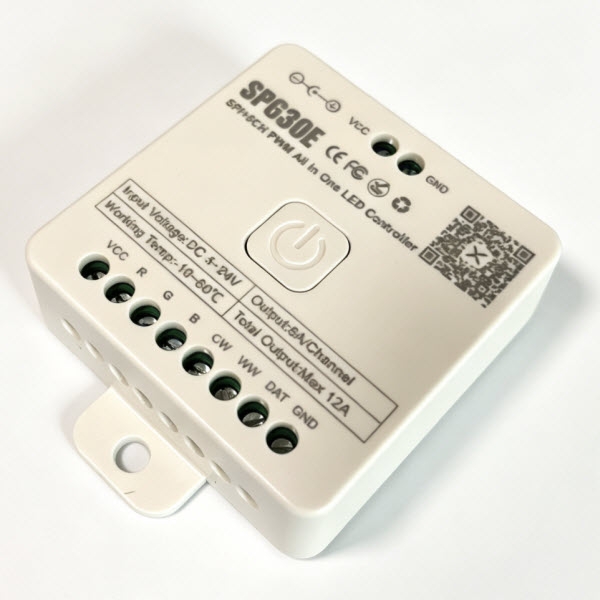

SP630E controller
Working temperature : -20℃ ~60℃;
Working Voltage : DC5V~24V;
Static working Current : 3mA~13mA;
PWM single channel max output current: 6A
PWM total max output current: 12A
Product size : 78mm*56mm*22mm;
PWM total max output current: 12A
Product size : 78mm*56mm*22mm;
2.4G Remote unit/ Panel
Working Voltage : DC3V;
Static working Current : 35uA;
RF frequency:2.4GHz
Remote distance: Max 30meter
Remote unit size:135mm*48mm*10mm
Remote panel size:86mm*86mm*12mm
RF frequency:2.4GHz
Remote distance: Max 30meter
Remote unit size:135mm*48mm*10mm
Remote panel size:86mm*86mm*12mm
App control:
Both IOS version and Android OS version are available. (hardware should support WIFI)
1.SP630E supports App control for iOS and Android devices.
2.Apple devices require iOS 10.0 or higher, and Android devices require Android 4.4 or higher.
2.Apple devices require iOS 10.0 or higher, and Android devices require Android 4.4 or higher.
3.You can search“ BanlanX”in App Store or Google Play to find the APP, or scan the QR code to download and install.
