This Ethernet-SPI/DMX Pixel light controller is decicated to converting The Ethernet signal into SPI Pixel signal, which is
designed for large preject with High-density pixel light, Such as matrixpanel lights,construction‘s contour lamp,etc. Besides
coverting Ethernet-Basedcontrol protocols into various LED driving IC signal,it also outputs DMX512 signal at the same time,
convieient for the connectionof different Type led lamp, and achieve the unified control of all kinds of led lamp in same project.
designed for large preject with High-density pixel light, Such as matrixpanel lights,construction‘s contour lamp,etc. Besides
coverting Ethernet-Basedcontrol protocols into various LED driving IC signal,it also outputs DMX512 signal at the same time,
convieient for the connectionof different Type led lamp, and achieve the unified control of all kinds of led lamp in same project.

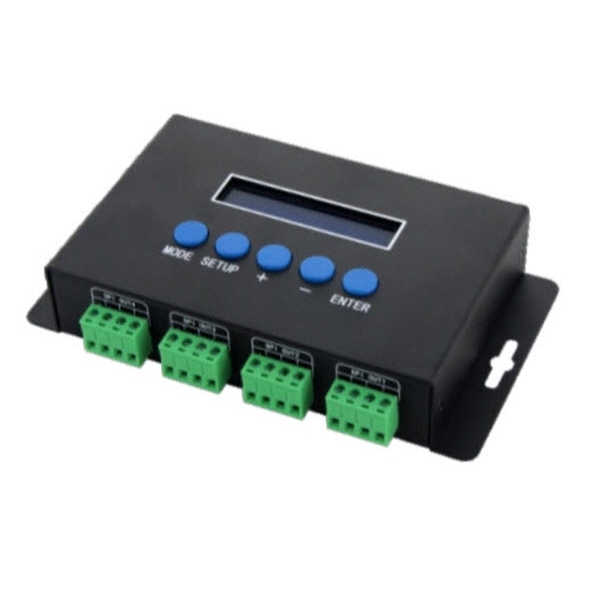

GECO204 Parameter
Working Voltage: DC5-24V
Output current: 7A*4CH (Built-in 7.5A fuse)
Input Ethernet control protocol: Artnet
Output control IC Below:
RGB: W2811/WS2812B/WS2801/SM16703/UCS1903/UCS2903/UCS2912/SK6812/SK9822/APA102 etc
RGBW:SK6812 RGBW,UCS2904B SM16704 etc
RGB: W2811/WS2812B/WS2801/SM16703/UCS1903/UCS2903/UCS2912/SK6812/SK9822/APA102 etc
RGBW:SK6812 RGBW,UCS2904B SM16704 etc
Control Pixels: RGB: 680pixel*4CH RGBW: 512Pixel*4CH
Output DMX512: one Port (1*512 Channels)
Working Temp:-20 to +55 degree
Product size: L166*W110*H31(mm)
Weight(G.W): 510g

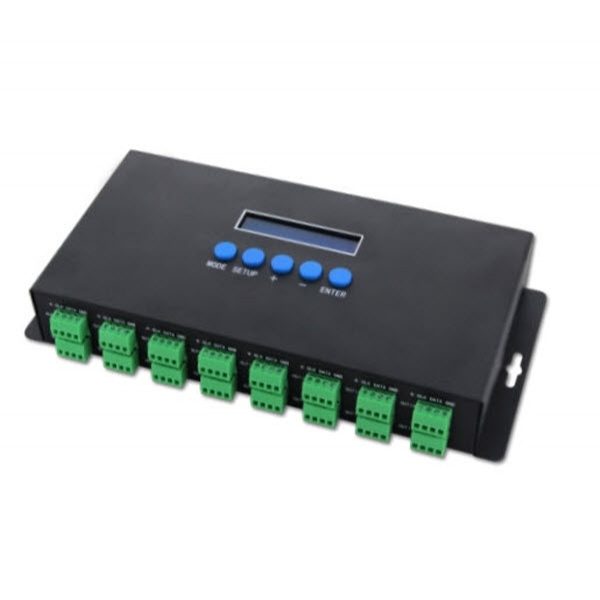

GECO216 Parameter
Working Voltage: DC5-24V
Output current: 3A*16CH (Built-in 5A fuse)
Input Ethernet control protocol: Artnet
Output control IC below:
RGB: W2811/WS2812B/WS2801/SM16703/UCS1903/UCS2903/UCS2912/SK6812/SK9822/APA102 etc
RGBW:SK6812 RGBW,UCS2904B SM16704 etc
Control Pixels: RGB: 340pixel*16CH RGBW: 256Pixel*16CH
RGB: W2811/WS2812B/WS2801/SM16703/UCS1903/UCS2903/UCS2912/SK6812/SK9822/APA102 etc
RGBW:SK6812 RGBW,UCS2904B SM16704 etc
Control Pixels: RGB: 340pixel*16CH RGBW: 256Pixel*16CH
Output DMX512: Two Port (2*512 Channel)
Working Temp:-20-55 degree
Product size: L258*W145*H41(mm)
Weight(G.W): 1100g
