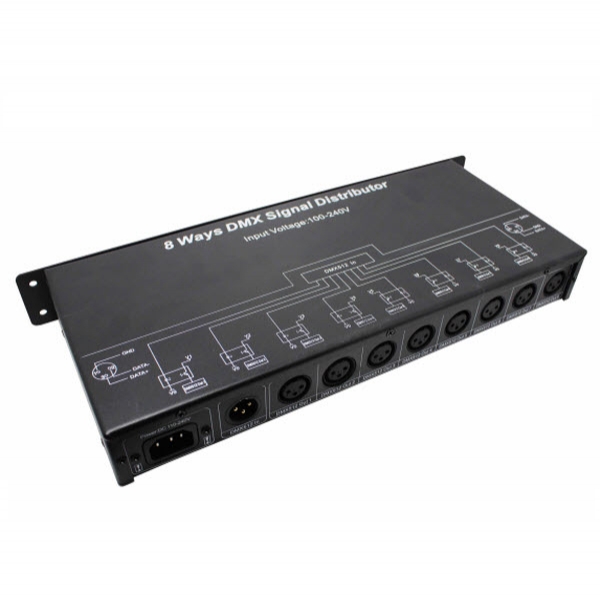

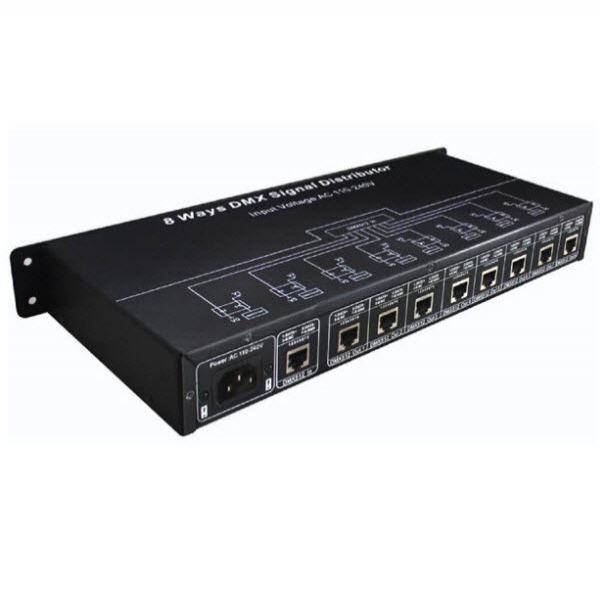

This DMX signal distributor is one series of DMX signal distributor, is specially used for amplifying DMX512 digital lighting
control signal and 8 channels allocation output. The input/output interface adopts high voltage isolation technology, applied
to amplify DMX512 signal transmission in the short distance, as well as the using occasion where output/input interfaces
need to be complete electrical isolation. Due to the independent isolation between input/output interfaces, it can avoid
burning precision digital light console by the problem of the controlling circuit, decoder, computer light, silicon box and
so on, to ensure the safe operation of digital lighting control, and also ensure DMX signal can normal transfer to all kinds of
lighting equipment, so as to improve reliability for the whole digital lighting control system.
control signal and 8 channels allocation output. The input/output interface adopts high voltage isolation technology, applied
to amplify DMX512 signal transmission in the short distance, as well as the using occasion where output/input interfaces
need to be complete electrical isolation. Due to the independent isolation between input/output interfaces, it can avoid
burning precision digital light console by the problem of the controlling circuit, decoder, computer light, silicon box and
so on, to ensure the safe operation of digital lighting control, and also ensure DMX signal can normal transfer to all kinds of
lighting equipment, so as to improve reliability for the whole digital lighting control system.
Technical parameters
● Working temperature: -20-60℃
● Input voltage: AC 100 ~ 240V 50～60Hz
● Rated power: 7W
● Input signal：8 channel DMX512 signal, the output port can be connected to 32 equipments mostly.
● The isolation voltage between input/output interface: > 1000V
● Cascade quantity: can cascade 16pcs signal amplifier mostly.
● Net weight: 1.95kg
● Gross weight: 2.5kg
● External dimension: L375*W153*H40mm
● Packing size: L410*W250
