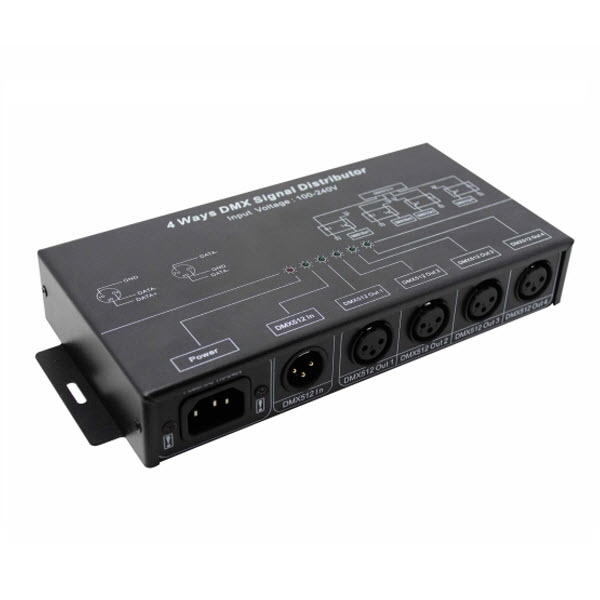

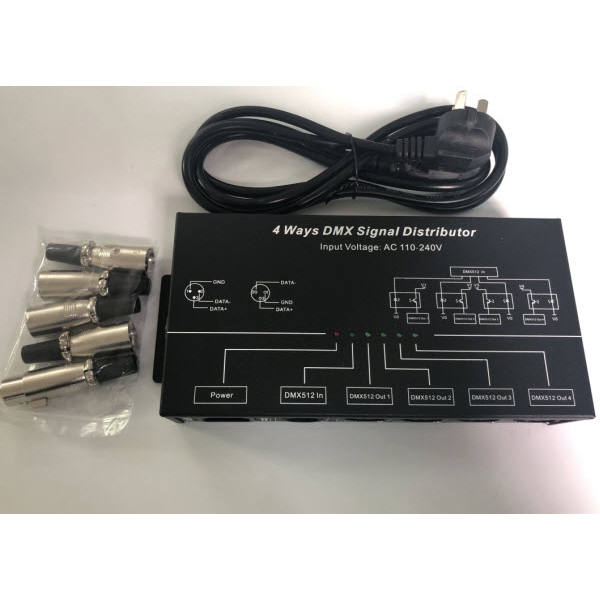

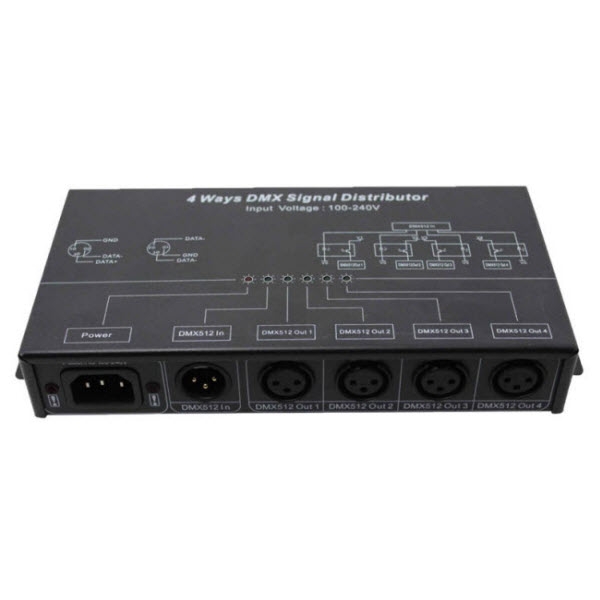

This DMX signal distributor is one of DMX signal distributor series, is specially used for amplifying DMX512 digital lighting
control signal and 4 channels allocation output. The input/output interface adopts high voltage isolation technology, applied to
amplify DMX512 signal transmission in the short distance, as well as the using occasion where output/input interfaces need to
be complete electrical isolation. Due to the independent isolation between input/output interface, it can avoid burning precision
control signal and 4 channels allocation output. The input/output interface adopts high voltage isolation technology, applied to
amplify DMX512 signal transmission in the short distance, as well as the using occasion where output/input interfaces need to
be complete electrical isolation. Due to the independent isolation between input/output interface, it can avoid burning precision
digital light console by the problem of the controlling circuit, decoder, computer light, silicon box and so on, to ensure the safe
operation of digital lighting control, and also ensure DMX signal can normal transfer to all kinds of lighting equipment, so as to
improve reliability for the whole digital lighting control system.
operation of digital lighting control, and also ensure DMX signal can normal transfer to all kinds of lighting equipment, so as to
improve reliability for the whole digital lighting control system.
● Working temperature: -20-60℃
● Input voltage: AC 100 ~ 240V 50～60HZ
● Rated power: 4W
● Input signal：1 channel DMX512 signal
● Output signal：4 channel DMX512 signal output, the output port can be connected to 32 equipments mostly.
● The isolation voltage between input/output interface: > 1000V
● Cascade quantity: can cascade 16pcs signal amplifier mostly.
● Net weight: 0.7kg
● Gross weight: 1.1kg
● External dimension: L241*W109.5*H37.5mm
● Packing size: L270*W170*H6
