1. Input Voltage DC5V, Single signal (data) control.
2. WS2812B/SK6812 chip built in SMD5050 led,each led is programmable
3. 1629leds, RGB/RGBW/3000k/4000k/6000k Available

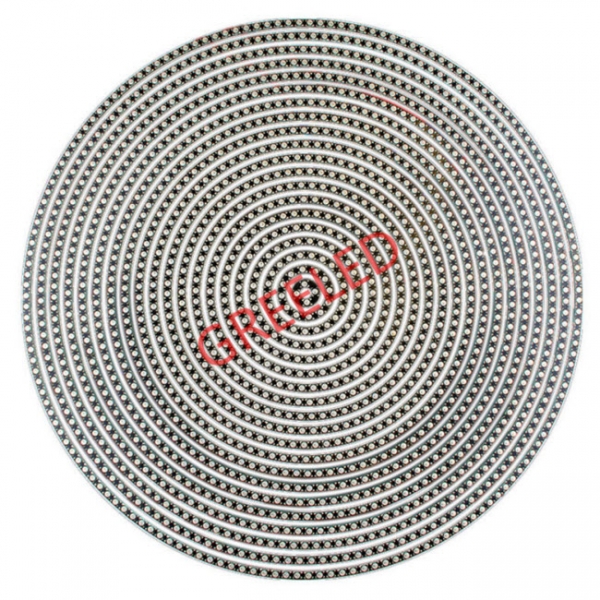

4. Black PCB,Entire product can be disassembled into 20pcs indiviual led ring.
5. Controller System：Arduino Microcontroller , DMX controller , Artnet.
6. All circuit connections have been completed without additional work.
| Product Model | ||||||||||
| M/N | Input voltage | LED QTY | IC Type | Color | PCB material | Indiviual Ring width |
Ring No. | LED QTY | Inner DIA | Outer DIA |
| 1629 leds Ring | DC5V | 1629Pcs | SK6812 Built in | RGB RGBW 3000K 4000K 6000K |
FR4 Rigid PCB |
6mm | 1 | 4 | 8mm | 20mm |
| 2 | 12 | 28mm | 40mm | |||||||
| 3 | 21 | 48mm | 60mm | |||||||
| 4 | 29 | 68mm | 80mm | |||||||
| 5 | 37 | 88mm | 100mm | |||||||
| 6 | 45 | 108mm | 120mm | |||||||
| 7 | 53 | 128mm | 140mm | |||||||
| 8 | 62 | 148mm | 160mm | |||||||
| 9 | 70 | 168mm | 180mm | |||||||
| 10 | 78 | 188mm | 200mm | |||||||
| 11 | 86 | 208mm | 220mm | |||||||
| 12 | 95 | 228mm | 240mm | |||||||
| 13 | 102 | 248mm | 260mm | |||||||
| 14 | 110 | 268mm | 280mm | |||||||
| 15 | 118 | 288mm | 300mm | |||||||
| 16 | 125 | 308mm | 320mm | |||||||
| 17 | 135 | 328mm | 340mm | |||||||
| 18 | 142 | 348mm | 360mm | |||||||
| 19 | 145 | 368mm | 380mm | |||||||
| 20 | 160 | 388mm | 400mm | |||||||
| Remark: The entire product can be disassembled into 20pcs individual led ring | ||||||||||
