The led adopt single data signal communication method,The data encoding adopt RZ code.The Din of led receive
data from signal source,Do lock 24bit data and send them to data latch,PWM scanning unit deal 24bit data and
send relative duty ratio signal to OUTR,OUTG,OUTB.At the same time, Reshaping and amplify extra data,
Forwarding them to subsequent led via Do of led.Based on this rule. The data reduce 24bit pass through every
pixel.The data auto-reshaping forwarding technology to ensure that the number of cascaded pixel is not limited.
The more cascaded pixels request the higher data transmission rate.
data from signal source,Do lock 24bit data and send them to data latch,PWM scanning unit deal 24bit data and
send relative duty ratio signal to OUTR,OUTG,OUTB.At the same time, Reshaping and amplify extra data,
Forwarding them to subsequent led via Do of led.Based on this rule. The data reduce 24bit pass through every
pixel.The data auto-reshaping forwarding technology to ensure that the number of cascaded pixel is not limited.
The more cascaded pixels request the higher data transmission rate.
| Product Model | ||||||||||
| M/N | Input Voltage | IC type | Led type | Chip | Color | Wave length(nm) | Luminous/led | Angle | Watt/led | Package |

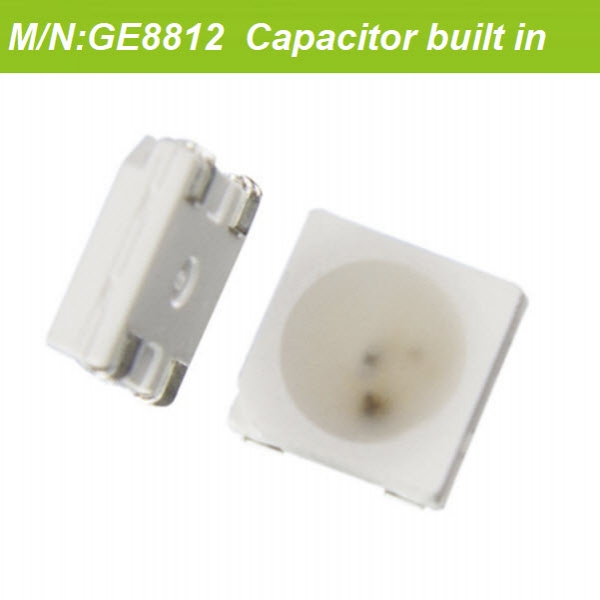

| GE8812 | DC5V | GE8812 Built-in |
SMD5050 4Pins Capacitor built-in |
Epistar 9mil*9mil |
RGB | R:620-623 G:517.5-520 B:467.5-470 |
R: 2.0-2.5lm G:5.0-6.0lm B:1.5-2.0lm |
120 | 0.2w | 1K/Reel |
| Remark: GE8812 IC Protocol is compatible with SK6812 | ||||||||||

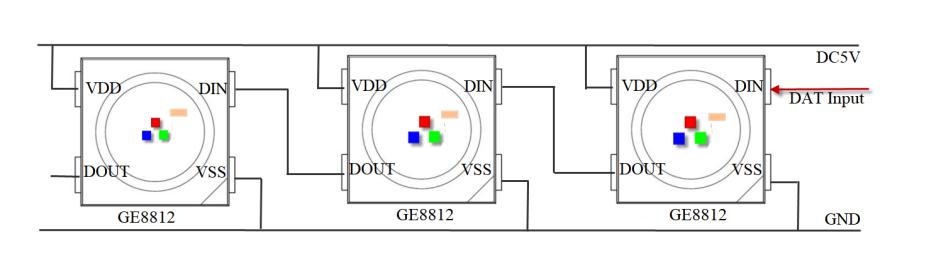

Application Circuit
