1.Top SMD internal integrated high quality external control line serial cascade constant current IC;
2.5V application; default on electric lights;
3.Control circuit and the RGB chip in SMD 5050 components, to form a complete control of pixel,
4.color mixing uniformity and consistency;
5.The two-wire synchronous control.
6.The three RGB output control, 8Bit (256) color; 5Bit (32) to adjust the brightness;
7.The three constant current drive, self detection function specific signal
8.The maximum frequency of 27KHZ serial data input
9.The double data transmission, built-in support uninterrupted oscillation PWM output, can maintain a static image.
10.Zero power when no light and no data input

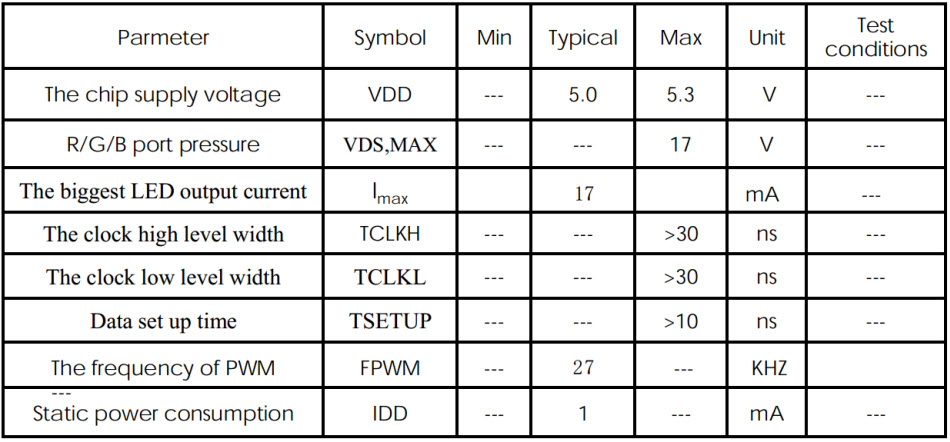

Parameter details:
Data Format:

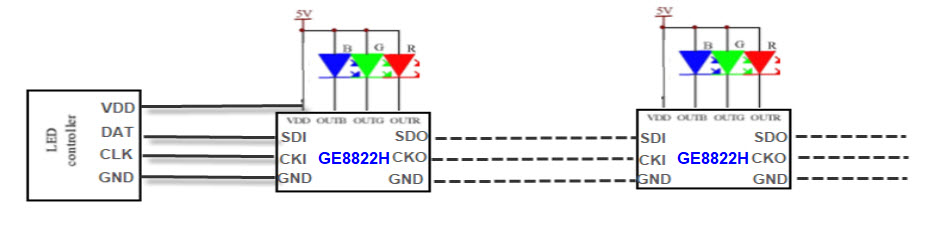

Application circuit:
| Product Model | ||||||||||
| M/N | Input Voltage | IC type | Led type | Chip | Color | Wave length(nm) | Luminous/led | Angle | Watt/led | Package |
| GE8822H | DC5V | GE8822 High Speed IC Built-in | SMD5050 6Pins |
Epistar 9mil*9mil | RGB | R:620-623 G:517.5-520 B:467.5-470 |
R: 2.0-2.5lm G:5.0-6.0lm B:1.5-2.0lm |
120 | 0.25w | 1K/Reel |
| Remark: 27KHZ Refresh frequency | ||||||||||
Parameter details:
Data Format:
Application circuit:
