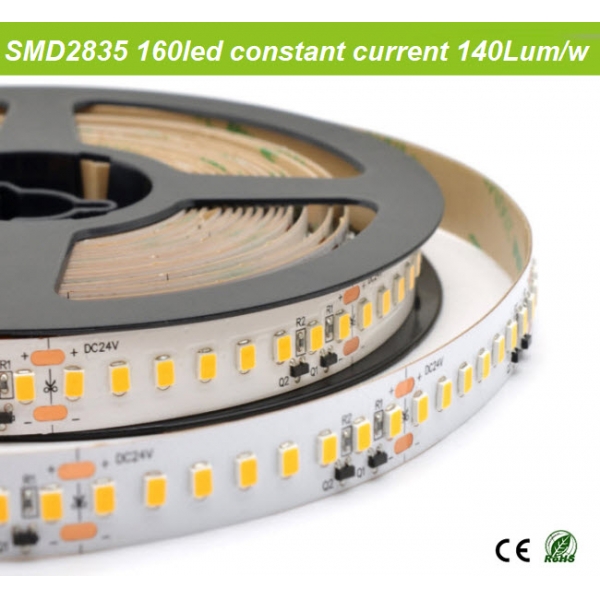

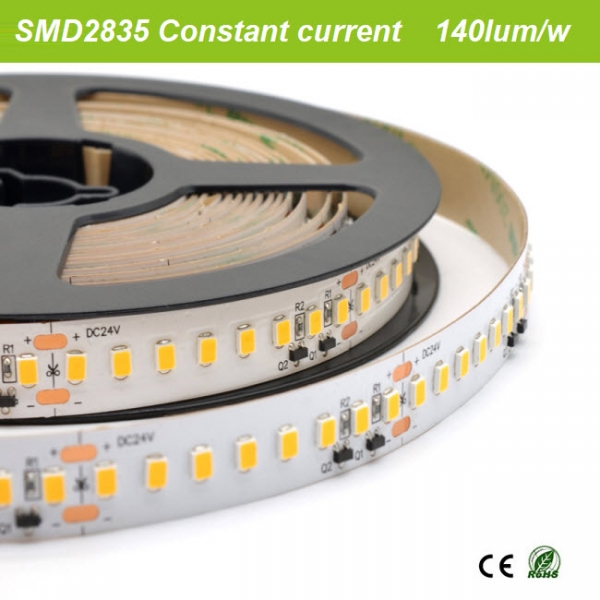

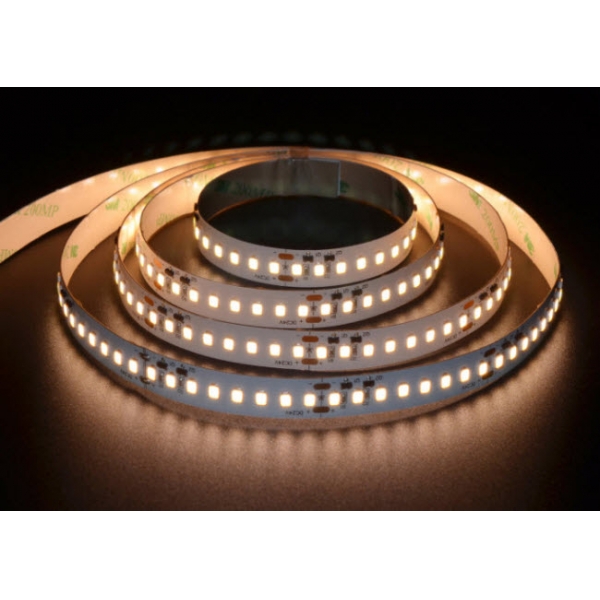

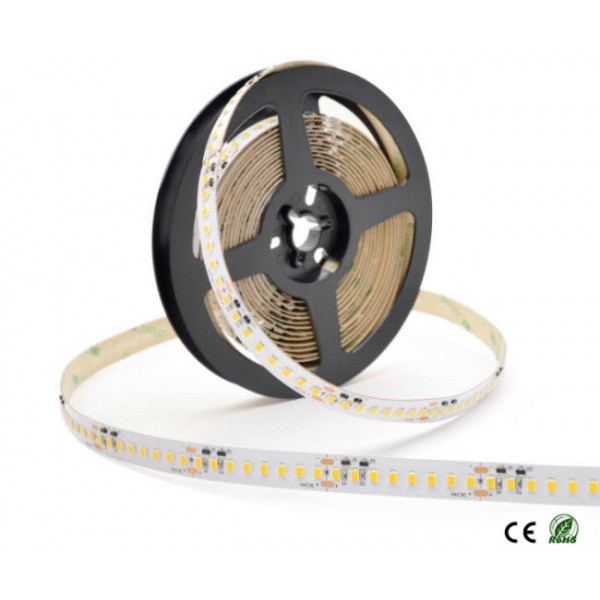

1. Input Voltage 24V
2. 160leds/m,SMD2835 LED,Constant current circuit.
3. Power comsuption 21.0Watt/M
4. Luminuous Flux 140lum/w, 2856lum/m to 2940lum/m
5. CRI90+ available, CRI95+ customizable.
6. 2700k,3000k,4200k,6000k available,support customs CCT.
7. 12mm width 3OZ Double-layer flexible white PCB.
8. 50mm/1.97" intervals cutting point.
9. Both ends wired with 15cm 2*Awg18 Red/black wire.
10. Standard length is 5meter/16.4‘ per reel, support customs length.
11. 3M adhesive tape backing
12. IP21/IP65/IP67/IP68 available.
13. CE,Rohs certificate,3years warranty
Dimension
| Product Model | ||||||||||
| M/N | Size/mm | IP Rate | Voltage | Led type | Leds/m | CRI | CCT | Luminous/m | Angle | Watt/m |
| GE160W2835ACC GE160W2835BCC GE160W2835CCC GE160W2835DCC |
5000*12*3.0 5000*12*3.5 5000*14*4.0 5000*14*4.0 |
IP21 IP65 IP67 IP68 |
DC24V | SMD2835 | 160 | 90 | 2700K 3000K 4200k 6200K |
WW:2856lm NW:2918lm W:2940lm |
120 | 21w |
