1. Input Voltage DC24V, DMX signal (data+ data-) control.

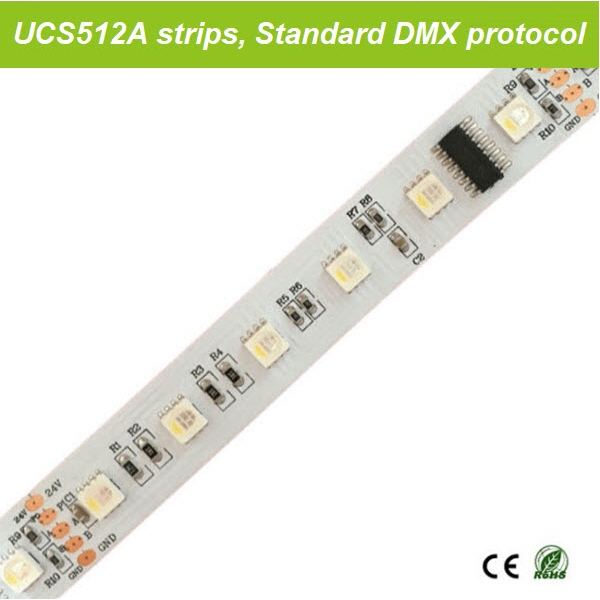

2. External UCS512A IC control, DMX512 to RS485 decoder embedded in IC. each six leds are programmable.
3. 60leds/m, 100mm/3.93" intervals cutting point.
4. Standard DMX512 controller wired with our DMX512 led strip
5. RGB+2700K,RGB+3000K,RGB+4200K,RGB+6000K available.
6. White PCB/Black PCB available. IP21/IP65/IP67/IP68 available.
7. Both ends wired with 150mm/5.9" 20Awg wire and JST 5Pin male/female connector
8. 3M adhensive tape stick on the back of non-waterproof version.
9. Controller System：SD controller , DMX controller , Artnet.
| Product Model | ||||||||||
| M/N | Size/mm | IP Rate | Voltage | Led type | IC type | Leds/m | Pixel/m | Luminous/m | Angle | Watt/m |
| GE60RGBW512AA GE60RGBW512AB GE60RGBW512AC GE60RGBW512AD |
5000*15*3.0 5000*15*3.5 5000*17.4.0 5000*17*4.0 |
IP21 IP65 IP67 IP68 |
DC24V | SMD5050RGBW 4 chips in one |
UCS512A External | 60 | 10 | R: 180lm G:300lm B:132lm W:360lm |
120 | 19.2w |
