DMX512 Digital led strip

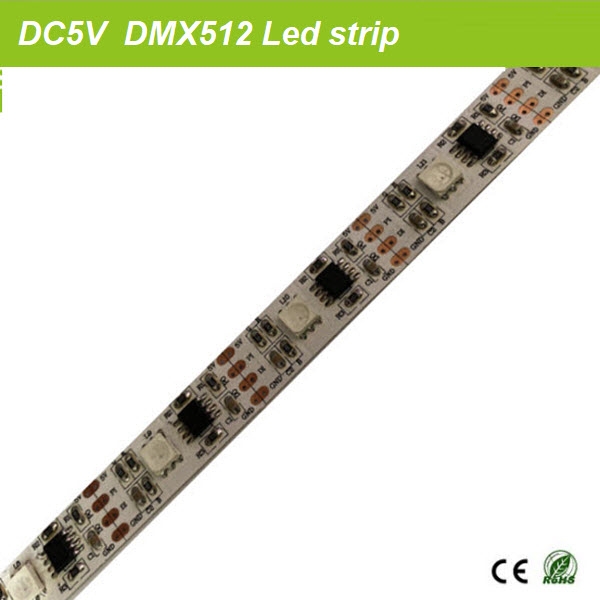

5V UCS512B DMX strip

    1. Input Voltage DC5V, DMX signal (data+) control.
    2. External UCS512B IC control, each led is programmable.
    3. 32leds/m, 31.25mm/1.23" intervals cutting point.

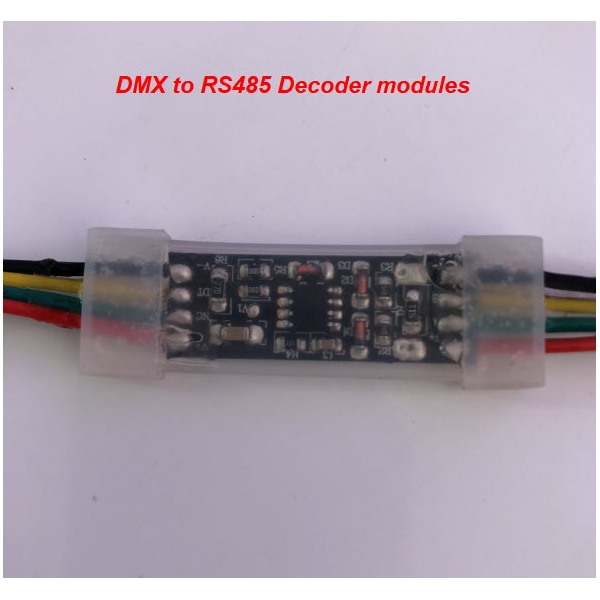

    4. Standard DMX512 controller wired with our DMX512 to RS485 mini decoder which wired with our DMX512 led strip.
    5. RGB Color/Single color.
    6. White PCB/Black PCB available. IP21/IP65/IP67/IP68 available.
    7. Both ends wired with 150mm/5.9" 20Awg wire and JST 4Pin male/female connector
    8. 3M adhensive tape stick on the back of non-waterproof version.
    9. Controller System:SD controller , DMX controller , Artnet.

    Product Model
    M/N Size/mm IP Rate Voltage Led type IC type Leds/m Pixel/m Luminous/m Angle Watt/m
    GE32RGB512BA
    GE32RGB512BB
    GE32RGB512BC
    GE32RGB512BD
     5000*12*3.0
      5000*12*3.5     5000*14.4.0
      5000*14*4.0
      IP21
       IP65
      IP67
      IP68
    DC5V SMD5050RGB UCS512B External  32 32 R: 96lm
     G:192lm  B:70lm
    Mix W:320lm
    120 9.6w



    File Name : Format: Size: Download:
