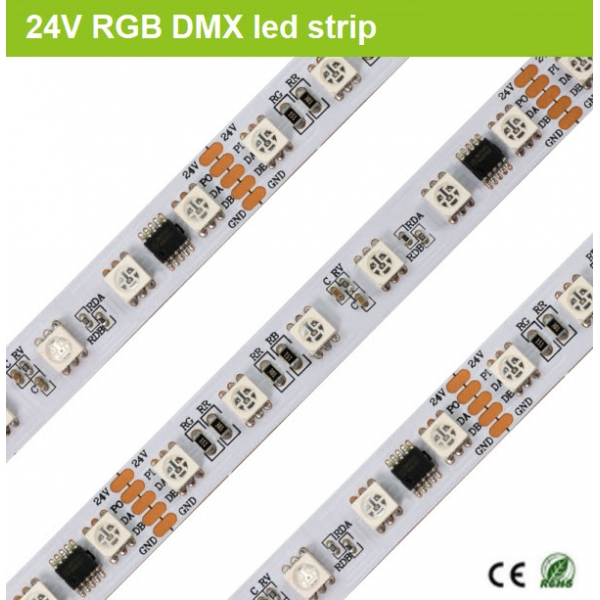

1. Input Voltage DC24V, DMX512 differential signal (A ,B) Control.
2. External SM18512PS IC , 6LEDS=1Pixel (3 Channel)
3. 60leds/m, 100mm/3.93" intervals cutting point.
4. Standard DMX512 Protocol
5. RGB Color/Single color.
6. White PCB/Black PCB available. IP21/IP65/IP67/IP68 available.
7. Both ends wired with 150mm/5.9" 20Awg wire and JST 5Pin male/female connector
8. 3M adhensive tape stick on the back of non-waterproof version.
9. Advice use with K-1000C,K-4000C,K-8000C controller which have writting address function
10. Data protocol please check SM18512PS datasheet.
Dimension
10. Data protocol please check SM18512PS datasheet.
| Product Model | ||||||||||
| M/N | Size/mm | IP Rate | Voltage | Led type | IC type | Leds/m | Pixel/m | Luminous/m | Angle | Watt/m |
| GE60RGB512AA GE60RGB512AB GE60RGB512AC GE60RGB512AD |
5000*12*3.0 5000*12*3.5 5000*14.4.0 5000*14*4.0 |
IP21 IP65 IP67 IP68 |
DC24V | SMD5050RGB | SM18512 External | 60 | 10 | R: 180lm G:360lm B:132lm Mix W:600lm |
120 | 14.4w |
Dimension
