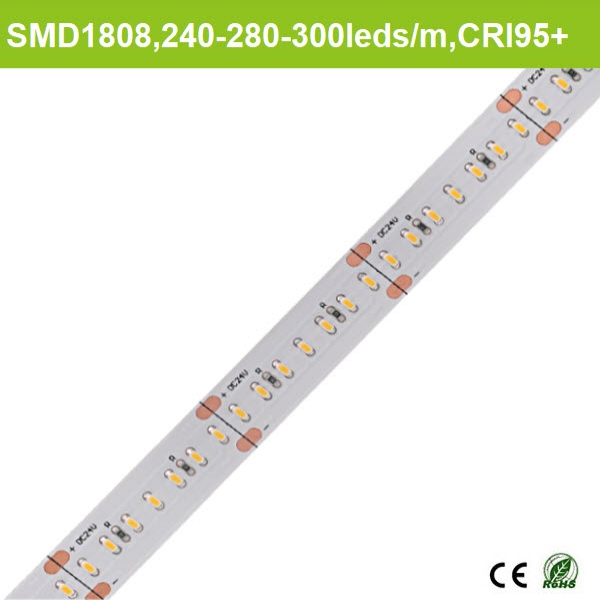

CRI95 SMD1808 led tape

SMD1808 RA95 led strip

    1. Input Voltage DC24V
    2. SMD1808 Mini super bright led, 240leds/m,280leds/m,300leds/m are optional
    3. Power comsuption 19.2Watt/M@240leds/m and 280leds/m, 20Watt/M@300leds/m
    4. All led CRI is 95+
    5. 2500K,2700k,3000k,3500k,4000k,5500k,6000k available
    6. R/G/B/Y/O single color available.
    7.  10mm width 3OZ Double-layer flexible white PCB.
    8.  240leds/m and 280leds/m with 25mm/0.984" intervals cutting point
    9. 300leds/m with 20mm/0.787" intervals cutting point
    10.  Both ends wired with 15cm 2*Awg18 Red/black wire.
    11. Standard length is 5meter/16.4‘ per reel, support customs length.
    12.  3M adhesive tape backing
    13.  IP21/IP65/IP67/IP68 available.
    14.  CE,Rohs certificate,3years warranty
    Product Model
    M/N Size/mm IP Rate Voltage Led type Leds/m CRI CCT/Color Luminous/m Angle Watt/m
     GE240W1808A  GE240W1808B  GE240W1808C  GE240W1808D 5000*10*2.5
     5000*10*3.0    5000*12*4.0
    5000*12*4.0
      IP21
         IP65
      IP67
      IP68
    DC24V SMD1808 240 95+ 2500K 2700K 3000K
    3500K 4000k
     5500K 6200K

    R/G/B/Y/O single color
    WW:1500-1750lm
    NW:1800lm
    W:1850lm
    6leds in series
    120 19.2w
    M/N Size/mm IP Rate Voltage Led type Leds/m CRI CCT Luminous/m Angle Watt/m
    GE280W1808A
    GE280W1808B
    GE280W1808C
    GE280W1808D
    5000*10*2.5
      5000*10*3.0     5000*12*4.0
     5000*12*4.0
      IP21
          IP65
      IP67
      IP68
    DC24V SMD1808 280 95+ 2500K 2700K 3000K
    3500K 4000k
     5500K 6200K

    R/G/B/Y/O single color
    WW:1760-2040lm
    NW:2100lm
    W:2150lm
    7leds in series
    120 19.2w
    M/N Size/mm IP Rate Voltage Led type Leds/m CRI CCT Luminous/m Angle Watt/m
    GE300W1808A
    GE300W1808B
    GE300W1808C
    GE300W1808D
    5000*10*2.5
      5000*10*3.0     5000*12*4.0
    5000*12*4.0
      IP21
        IP65
      IP67
      IP68
    DC24V SMD1808 300 95+ 2500K 2700K 3000K
    3500K 4000k
     5500K 6200K

    R/G/B/Y/O single color
    WW:1560-1820lm
    NW:1880lm
          W:1950lm
    6leds in series
    120 20.0w

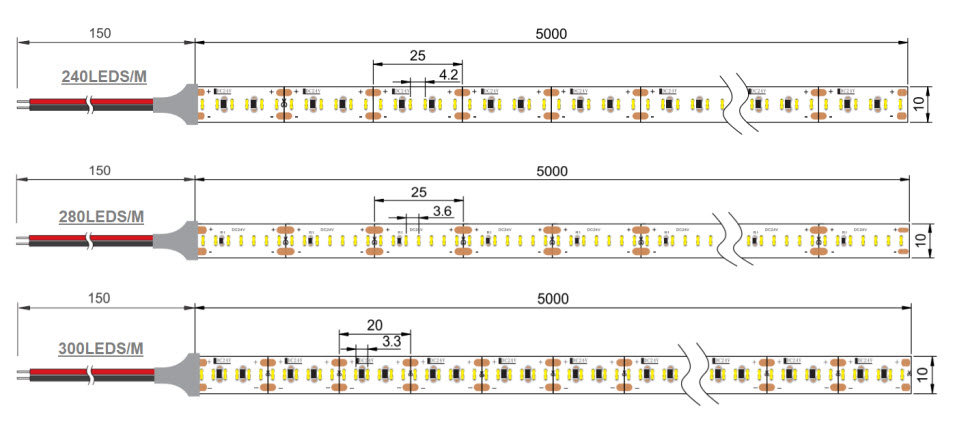

    Dimension:




    File Name : Format: Size: Download:
