Constant current led tape

15M/Roll SMD2835 led strip

    1. Input Voltage DC24V
    2. 120leds/m ,SMD2835 LED,Constant current circuit.
    3. Single end feed power 15meter length without voltage drop ,Both end feed power 30meter length without voltage drop
    4. Power comsuption 10.5Watt/M
    5. Luminuous Flux 780lum/m to 900lum/m
    6. CRI 80+/CRI+90 available, CRI95+ customizable.
    7. 2700k,3000k,4200k,6000k available,support customs CCT.
    8.  10mm width 2OZ Double-layer flexible white PCB.
    9. 50mm/1.97" intervals cutting point.
    10.  Both ends wired with 15cm 2*Awg18 Red/black wire.
    11. Standard length is 15meter/49.2‘ per reel, support customs length.
    12.  3M adhesive tape backing
    13.  IP21 Non-waterproof.
    14.  CE,Rohs certificate,3years warranty
    15. For 120leds led strip, 5m/Reel,10m/Reel,Max 15m/Reel available via Adjusting led current (Power Comsuption).
    16. For 60leds led strip, 5m/Reel 10m/Reel,15m/Reel,Max 20m/Reel available via adjusting Power Comsuption.

    Product Model
    M/N Size/mm IP Rate Voltage Led type Leds/m CRI CCT Luminous/m Angle Watt/m
    GE120W2835ACC 15000*10*3.0  IP21 DC24V SMD2835 120 90  2700K   3000K
     4200k
     6200K
    WW:780lm
    NW:830lm
    W:900lm
    120 10.5W
    GE60W2835ACC 20000*12*3.0 IP21 DC24V SMD2835 60 90  2700K  3000K
    4200k
    6200K
    WW:670lm
    NW:710lm
    W:780lm
    120 8.5W
         Remark: Customs length&luminous Flux available.

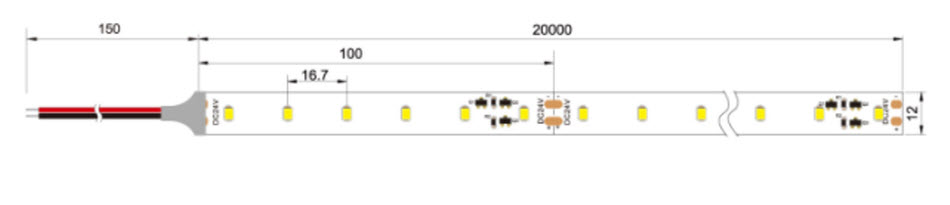

    Dimension

    File Name : Format: Size: Download:
