1. Input Voltage DC24V
2. Bonder 1240chips per meter on PCB,180º Beam Angle
3. Power comsuption Max 20Watt/m
4. IP21/IP65/IP67/IP68 available
5. Optional color:RGB+2700/3000/4000/6000k , customized CCT available.
6.12mm width 3oz Double-layer flexible white PCB
7. 22.70mm intervals cutting point.
8. Both ends wired with 15cm 5 Pin lead wire
9. Standard length:5meter/16.4‘ per reel, support customized length.
10.3M adhesive tape backing.
| Product Model | L*W*H (mm) | Voltage | Chips Type | Chips QTY | Emitting Color | Lum Flux(RGB) | Lum Flux(CCT) | CRI | Angle | Power |
| GE310RGBWCOBA | 5000*12.0*1.6 | DC24V | COB | 1240pcs | RGB+2700k | R:280lum/m | 2700K:500lum/m | 90+ | 180° | Max 20w/m |
| CE310RGBWCOBB | 5000*12.5*2.0 | DC24V | COB | 1240pcs | RGB+3000K | G:480lum/m | 3000K:520lum/m | 90+ | 180° | Max 20w/m |
| GE310RGBWCOBC | 5000*14.0*3.5 | DC24V | COB | 1240pcs | RGB+4000K | B:220lum/m | 4000K:580lum/m | 90+ | 180° | Max 20w/m |
| GE310RGBWCOBD | 5000*14.5*4.0 | DC24V | COB | 1240pcs | RGB+6000K | Mix W: 650lum/m | 6000K:575lum/m | 90+ | 180° | Max 20w/m |

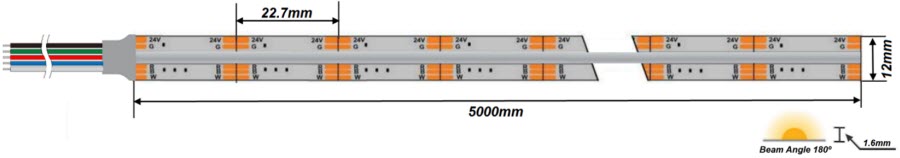

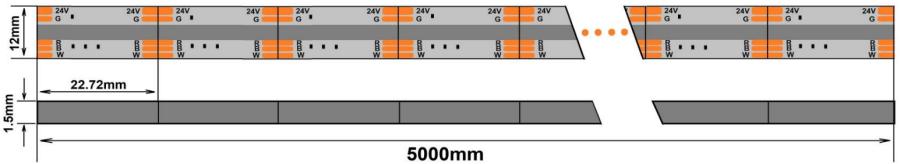

Dimension:
