1. Input Voltage DC24V
2. Bonder 840 chips/m on PCB,180 Degree Emitting Angle
3. Power comsuption Max 15Watt/m
4. IP21/IP65/IP67/IP68 available
5. RGB color, R:620-530nm G:520-530nm B:465-475nm
6. 10mm width 2.5OZ Double-layer flexible white PCB
7. 50mm intervals cutting point.
8. Both ends wired with 15cm 4 Pin lead wire
9. Standard length is 5meter/16.4‘ per reel, support customs length.
10. 3M adhesive tape backing.

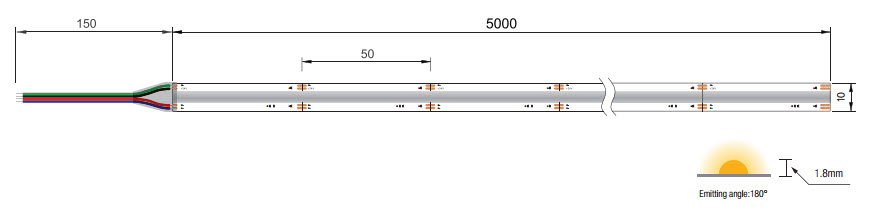

Dimension:
| Product Model |
||||||||||
| M/N | Size/mm | IP Rate | Voltage | Led type | Chips/m | WL(nm) | Luminous/m | Angle | Watt/m | |
| GE840RGBCOBA GE840RGBCOBB GE840RGBCOBC GE840RGBCOBD |
5000*10*2.0 5000*10*3.0 5000*12*4.0 5000*12*4.0 |
IP21 IP65 IP67 IP68 |
DC24V | COB | 840 | R: 620-630nm G:520-530nm B:465-475nm |
R:160lm G:350lm B:100Lm |
180º | Max 15W | |
