1. Input Voltage DC12V/24V

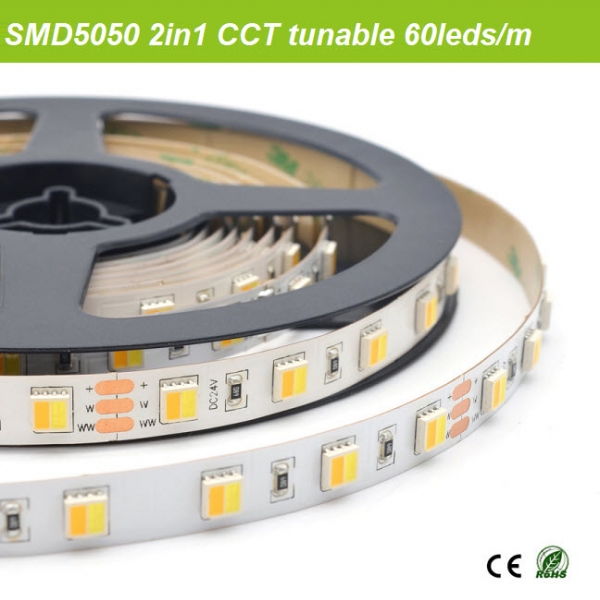

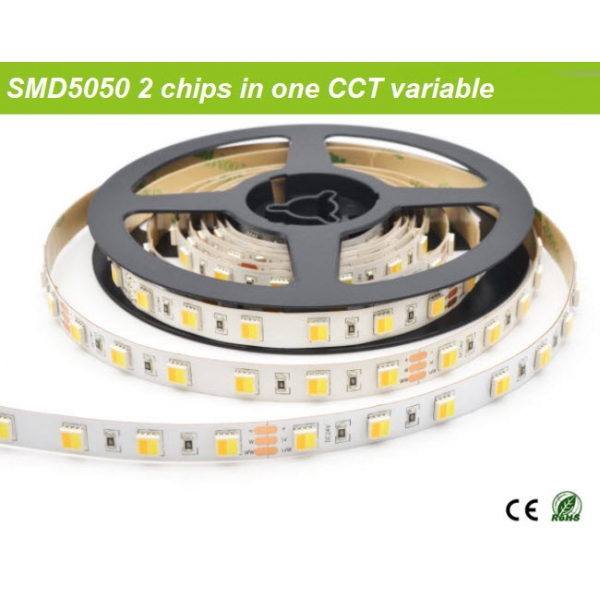

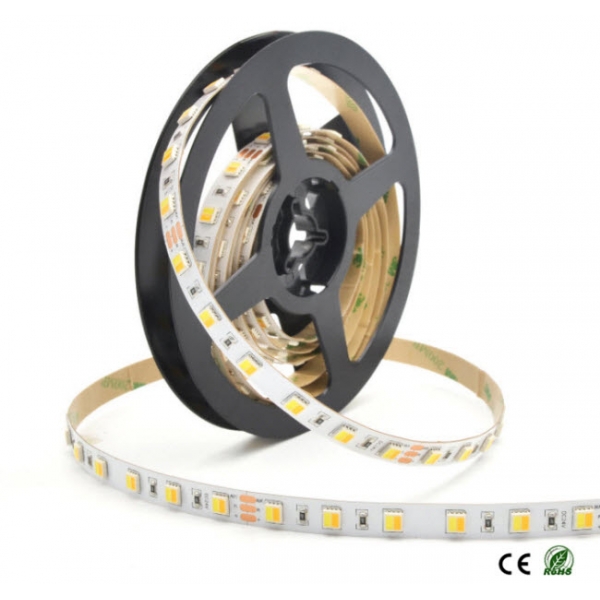

2. 60leds/m, W/WW 2 chips in one SMD5050 LED
3. Variable range from 3000k to 6500k, CRI 80+.
4. Power comsuption Max 17.2Watt/M
5. Luminuous Flux 725lum/m(3000k), 730lum/m(6500K)
6. 10mm width 3OZ Double-layer flexible white PCB.
7. 50mm/1.97"intervals cutting point with 12V led strip.
8. 100mm/3.94" intervals cutting point with 24V led strip.
9. Both ends wired with 15cm 3*Awg20 wire.
10. Standard length is 5meter/16.4‘ per reel, support customs length.
11. 3M adhesive tape backing
12. IP21/IP65/IP67/IP68 available.
13. CE,Rohs certificate,3years warranty
| Product Model | ||||||||||
| M/N | Size/mm | IP Rate | Voltage | Led type | Leds/m | CRI | CCT | Luminous/m | Angle | Watt/m |
| GE60VW5050A GE60VW5050B GE60VW5050C GE60VW5050D |
5000*10*3.0 5000*10*3.5 5000*12*4.0 5000*12*4.0 |
IP21 IP65 IP67 IP68 |
DC12V DC24V |
SMD5050 (2chips in one) |
60 | 80 | 3000K 6500K |
WW:725lm W:730lm |
120 | 17.2W |
| Remark: support customs led QTY | ||||||||||
