1. Input Voltage DC12V/24V

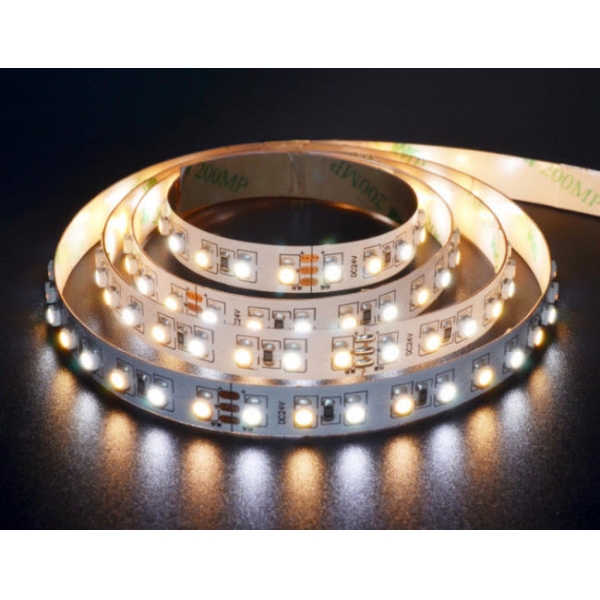

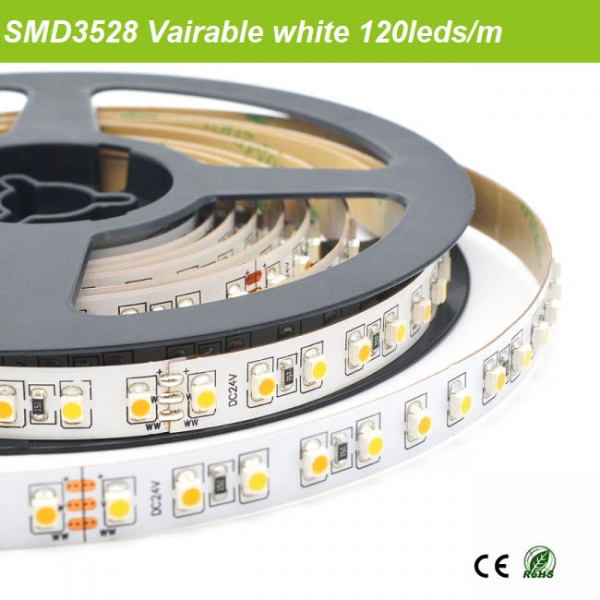

2. 120leds/m（60pcs 2700k+60pcs 6500K),SMD3528 LED
3. Variable range from 2700k to 6500k
4. Power comsuption Max 9.6Watt/M
5. Luminuous Flux 280lum/m(2700k), 305lum/m(6500K)
6. CRI 80+/CRI+90 available, CRI95+ customizable.
7. 10mm width 3OZ Double-layer flexible white PCB.
8. 50mm/1.97" intervals cutting point with 12V led strip.
9. 100mm/3.94" intervals cutting point with 24V led strip.
10. Both ends wired with 15cm 3*Awg20 wire.

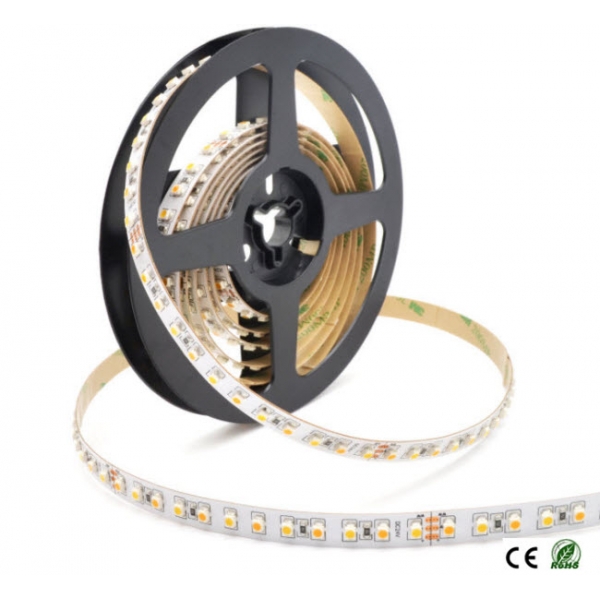

11. Standard length is 5meter/16.4‘ per reel, support customs length.
12. 3M adhesive tape backing

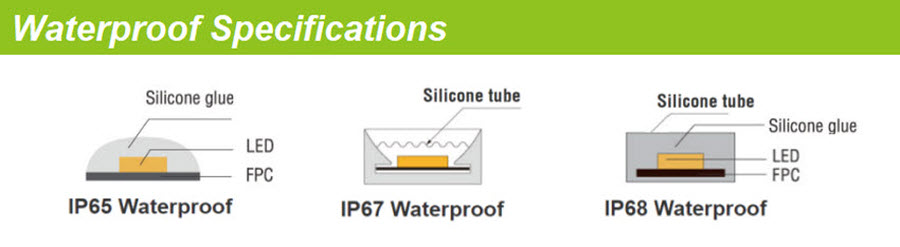

13. IP21/IP65/IP67/IP68 available.
14. CE,Rohs certificate,3years warranty
| Product Model | ||||||||||
| M/N | Size/mm | IP Rate | Voltage | Led type | Leds/m | CRI | CCT | Luminous/m | Angle | Watt/m |
| GE120VW3528A GE120VW3528B GE120VW3528C GE120VW3828D |
5000*10*3.0 5000*10*3.5 5000*12*4.0 5000*12*4.0 |
IP21 IP65 IP67 IP68 |
DC12V DC24V |
SMD3528 | 120 | 80 90 |
2700K 6500K |
WW:280lm W:305lm |
120 | 9.6W |
| Remark: support customs led QTY | ||||||||||

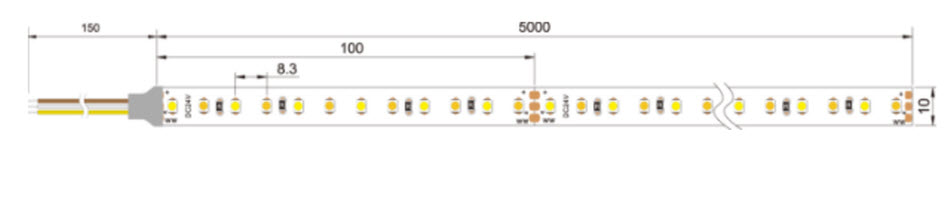

Dimension
