1. Input Voltage 24V
2. 224leds/m（112pcs 2700k+112pcs 6500K),SMD3014 LED
3. Variable range from 2700k to 6500k
4. Power comsuption Max 23.0Watt/M
5. Luminuous Flux 870lum/m(2700k), 1000lum/m(6500K)
6. CRI 80+/CRI+90 available, CRI95+ customizable.
7. 10mm width 3OZ Double-layer flexible white PCB.
8. 50mm/1.97" intervals cutting
9. Both ends wired with 15cm 3*Awg20 wire.
10. Standard length is 5meter/16.4‘ per reel, support customs length.
11. 3M adhesive tape backing
12. IP21/IP65/IP67/IP68 available.
13. CE,Rohs certificate,3years warranty

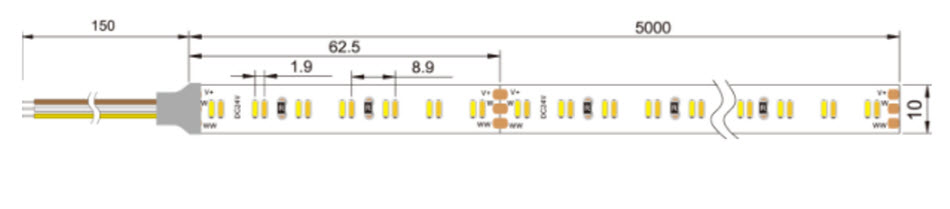

Dimension
| Product Model | ||||||||||
| M/N | Size/mm | IP Rate | Voltage | Led type | Leds/m | CRI | CCT | Luminous/m | Angle | Watt/m |
| GE224VW3014A GE224VW3014B GE224VW3014C GE224VW3014D |
5000*10*3.0 5000*10*3.5 5000*12*4.0 5000*12*4.0 |
IP21 IP65 IP67 IP68 |
DC24V | SMD3014 | 224 | 90 | 2700K 6500K |
WW:870lm W:1000lm |
120 | 23W |
| Remark: support customs led QTY | ||||||||||
