1. Input Voltage DC12V/24V
2. 120leds/m（60pcs 2700k+60pcs 6500K),SMD2835 LED
3. Variable range from 2700k to 6500k
4. Power comsuption Max 24.0Watt/M
5. Luminuous Flux 840lum/m(2700k), 960lum/m(6500K)
6. CRI 80+/CRI+90 available, CRI95+ customizable.
7. 10mm width 3OZ Double-layer flexible white PCB.
8. 50mm/1.97" intervals cutting point with 12V led strip.
9. 100mm/3.94" intervals cutting point with 24V led strip.
10. Both ends wired with 15cm 3*Awg20 wire.
11. Standard length is 5meter/16.4‘ per reel, support customs length.
12. 3M adhesive tape backing
13. IP21/IP65/IP67/IP68 available.
14. CE,Rohs certificate,3years warranty

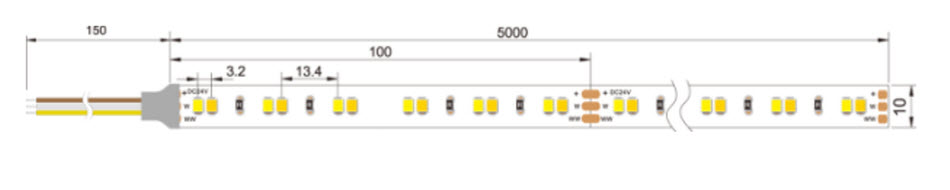

Dimension
| Product Model | ||||||||||
| M/N | Size/mm | IP Rate | Voltage | Led type | Leds/m | CRI | CCT | Luminous/m | Angle | Watt/m |
| GE112VW2835A GE112VW2835B GE112VW2835C GE112VW2835D |
5000*10*3.0 5000*10*3.5 5000*12*4.0 5000*12*4.0 |
IP21 IP65 IP67 IP68 |
DC24V | SMD2835 | 120 | 80 90 |
2700K 6500K |
WW:780lm W:865lm |
120 | 19.2W |
| GE120VW2835A GE120VW2835B GE120VW2835C GE120VW2835D |
5000*10*3.0 5000*10*3.5 5000*12*4.0 5000*12*4.0 |
IP21 IP65 IP67 IP68 |
DC12V DC24V |
SMD2835 | 120 | 80 90 |
2700K 6500K |
WW:840lm W:920lm |
120 | 24W |
| Remark: support customs led QTY | ||||||||||
