LED Neon Flex

Dome Side Bending Flex Neon

    Description:
    1. DC24V IP67 rating  270º beam angle dome silicone neon Flex, 5/10/15w/m available.
    2. Constant voltage and Constant current available.

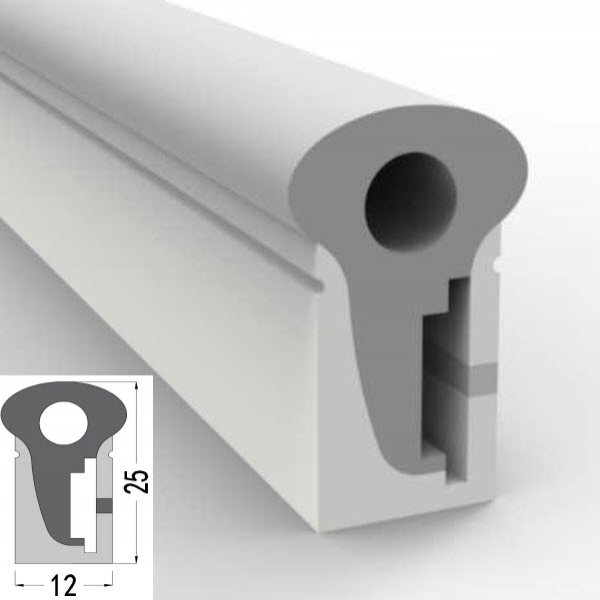

    3. Cross section size10*23mm(S1023) and 12*25mm(S1225) neon housing available
    4. Sideview bending, 150mm Min Bending diameter.
    5. Lead wire connection direction: Front direct entry
    6. Optional lead wire: Bare wire, Insulated sheath wire, waterproof connector
    7. Standard lead wire length are 300mm both ends, Customized length available.
    8. Mounting way: Aluminum clips, Flexible Aluminum profile, Alumiminum extrusion
    9. Advice aluminum extrusion: W12.6mm*H15.4mm(10*23mm neon),W15.0mm*H18.4mm(12*25mm neon)
    10.Please read model named rule before choose model.
    11.Luminous data and datasheet, Please send enquiry to sales@gree-leds.com

    Model Named Rule

    GECV24S1023###   GE(Brand),CV(Constant Voltage),24(Voltage),S(Bending direction Sideview),1023(Neon Cross Section Size 10*23mm)

    GECC24S1023###   GE(Brand),CC(Constant Current),24(Voltage),S(Bending direction Sideview),1023(Neon Cross Section Size 10*23mm)
    ### Emitting color Code    C21:2100K,C24:2400K,C27:2700K,C30:3000K,C35:3500K,C40:4000K,C50:5000K,C60:6000K
    ### Emitting color Code    R:Red,G:Green,B:Blue,Y:Yellow,P:Pink,O:Orange,VW (Variable white dual white),RGB(RGB Color)
    ### Emitting color code    RGBW (RGB22:RGB+2200k,RGB27:RGB+2700K,RGB30:RGB+3000K,RGB40:RGB+4000K,RGB60:RGB+6000K)

    Constant Voltage

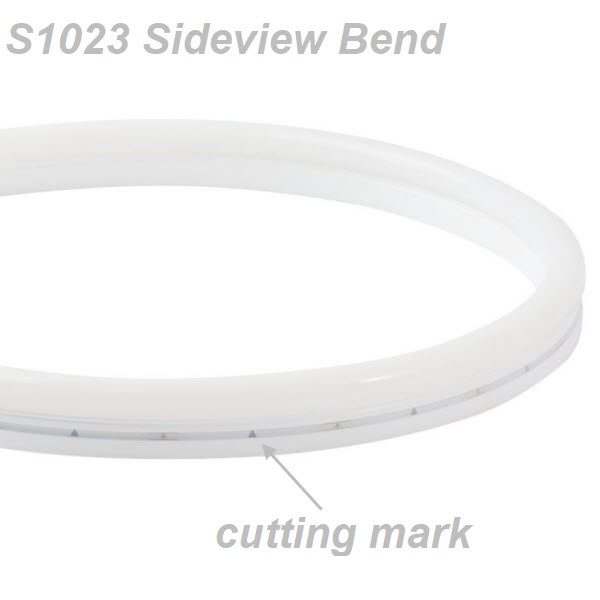

    24V 270º Sideview bending,IP67 10*23mm neon housing,Min bend diameter 150mm.
    M/N Optional Color Code Cutting Unit (mm) Optional Watt/m Standard Length  CRI
    GECV24S1023(CCT) C21/24/27/30/35/40/50/60 50mm 5/10/15w//m 5meter   90+
    GECV24S1023(nm)             R/G/B/Y/P/O 50mm 5/10/15w/m 5meter
    GECV24S1023VW  2200-6500K/2700-6500K 50mm/62.5mm 5/10/15w/m 5meter    90+
    GECV24S1023RGB RGB 62.5mm 5/10/15w/m 5meter
    GECV24S1023RGBW RGB+22/27/30/40/60 83.3mm 5/10/15w/m 5meter

    Constant Current 24V 270º Sideview bending,IP67 10*23mm neon housing,Min bend diameter 150mm.
    M/N Optional Color Code Cutting Unit (mm) Optional Watt/m Standard length CRI
    GECC24S1023(CCT) C21/24/27/30/35/40/50/60 50mm 5/10/15w/m 10meter 90+
    GECC24S1023(nm) R/G/B/Y/P/O 50mm 5/10/15w/m 10meter

    Constant Voltage

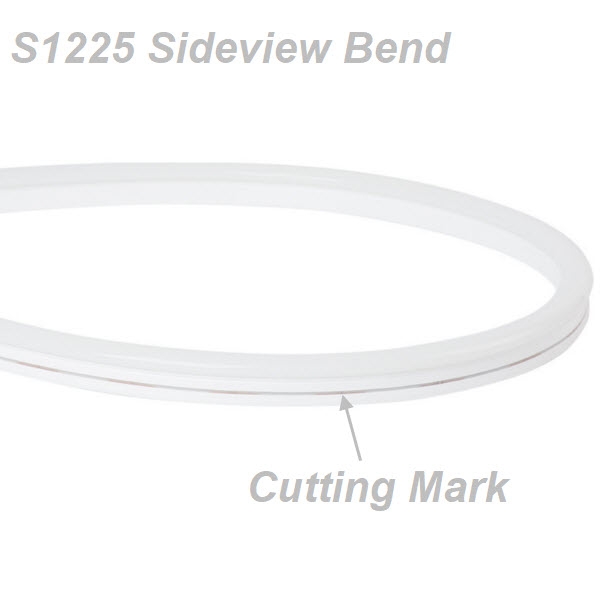

    24V 270º Sideview bending,IP67 12*25mm neon housing,Min bend diameter 150mm.
    M/N Optional Color Code Cutting Unit (mm) Optional Watt/m Standard Length  CRI
    GECV24S1225(CCT) C21/24/27/30/35/40/50/60 50mm 5/10/15w//m 5meter   90+
    GECV24S1225(nm)             R/G/B/Y/P/O 50mm 5/10/15w/m 5meter
    GECV24S1225VW  2200-6500K/2700-6500K 50mm/62.5mm 5/10/15w/m 5meter    90+
    GECV24S1225RGB RGB 62.5mm 5/10/15w/m 5meter
    GECV24S1225RGBW RGB+22/27/30/40/60 83.3mm 5/10/15w/m 5meter

    Constant Current 24V 270º Sideview bending,IP67 12*25mm neon housing,Min bend diameter 150mm.
    M/N Optional Color Code Cutting Unit (mm) Optional Watt/m Standard length CRI
    GECC24S1225(CCT) C21/24/27/30/35/40/50/60 50mm 5/10/15w/m 10meter 90+
    GECC24S1225(nm) R/G/B/Y/P/O 50mm 5/10/15w/m 10meter
