1. Input Voltage DC12V, Unipolar RZ Code Data control

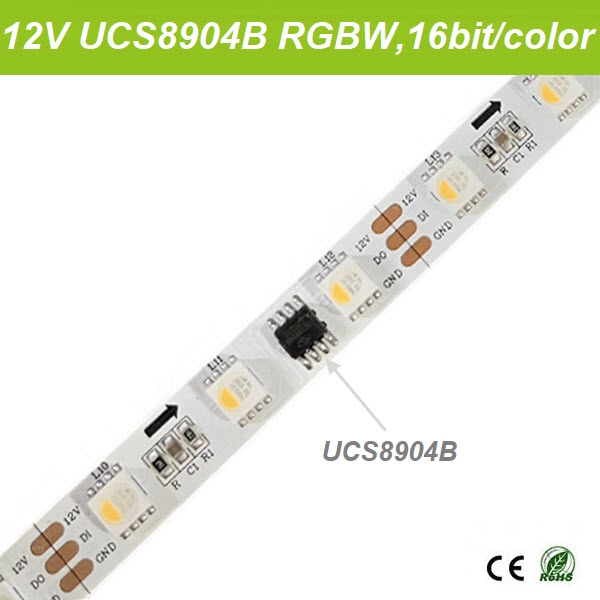

2. UCS8904B IC Protocol. 60leds/m,20pixel/m. 3led=1Pixel
3. 16bit/color,65536 grayscale.
3. 16bit/color,65536 grayscale.
3. Emitting color:RGB+2700K RGB+3000K,RGB+4200K,RGB+6000K available.
4. 50mm/1.97" intervals cutting point
5. 10mm width White PCB/Black PCB available.
6. IP Rating:IP21/IP65/IP67/IP68. Height and width variable from different IP Rating.
7. Both ends wired with 150mm/5.9" 20Awg wire with JST 3Pin male/female connector
8. The upgraded RGBW led tape of UCS2904
9. UCS8904 IC Protocol and datasheet link here.
9. UCS8904 IC Protocol and datasheet link here.
| M/N | L*W*H(mm) | IP Rating | Input Voltage | leds/m | Pixel/m | Optional Emitting Color | IC Protocol | Watt/m | Qty/Reel |
| GE60RGBW8904A12 | 5000*10*2.5mm | IP20 | DC12V | 60 | 20 | RGB+2700K | UCS8904B | 19.2w/m | 5m |
| GE60RGBW8904B12 | 5000*10*3.0mm | IP65 | DC12V | 60 | 20 | RGB+3000K | UCS8904B | 19.2w/m | 5m |
| GE60RGBW8904C12 | 5000*12*4.0mm | IP67 | DC12V | 60 | 20 | RGB+4200K | UCS8904B | 19.2w/m | 5m |
| GE60RGBW8904D12 | 5000*12*4.5mm | IP68 | DC12V | 60 | 20 | RGB+6000K | UCS8904B | 19.2w/m | 5m |
