1. Input Voltage DC5V, Dual signal (Data,Clk) control.

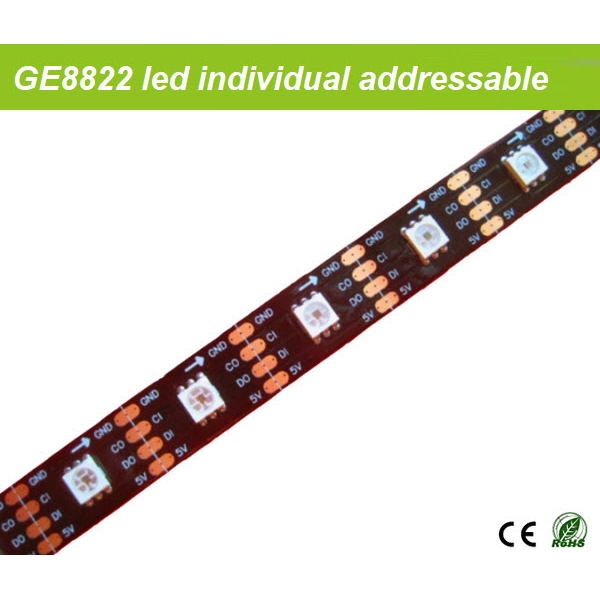

2. GE8822 IC embedded in SMD5050 RGB LED. Each led is programmable.IC Protocol compatible with SK9822/APA102.
3. 30leds/m,48leds/m,60leds/m,72leds/m,96leds/m,144leds/m available.

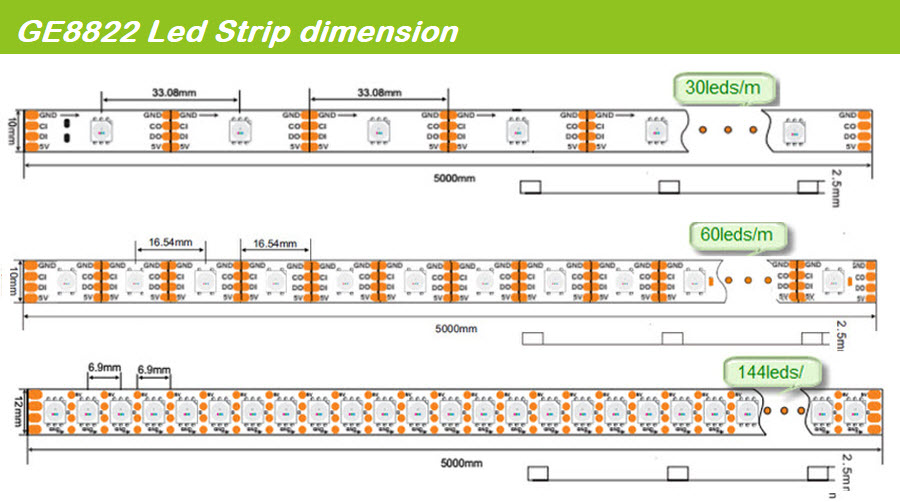

4. 33.3mm/1.31",20.8mm/0.82",16.6mm/0.65",13.88mm/0.55",10.4mm/0.41",6.9mm/0.27" intervals cutting point

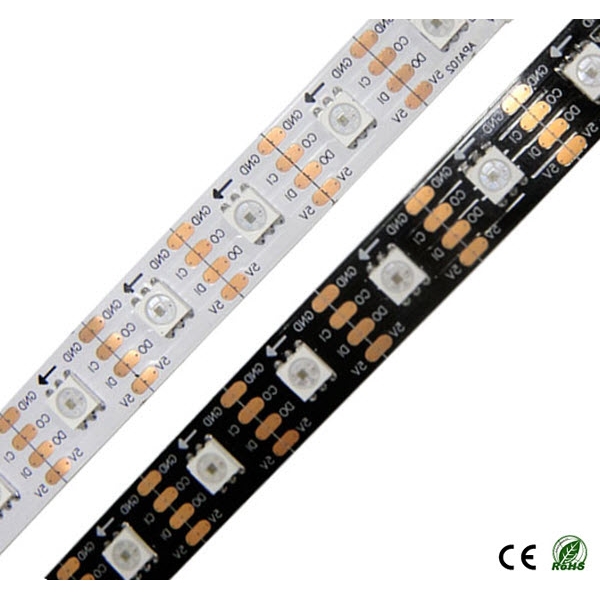

5. White PCB/Black PCB available, IP21/IP65/IP67/IP68 available.
6. Both ends wired with 150mm/5.9" 20Awg wire and JST 4Pin male/female connector
7. 3M adhensive tape stick on the back of non-waterproof version.
8. Controller System：SD controller , DMX controller , Artnet.
| Product Model | ||||||||||
| M/N | Size/mm | IP Rate | Voltage | Led type | IC type | Leds/m | Pixel/m | Luminous/m | Angle | Watt/m |
| GE30RGB8822A GE30RGB8822B GE30RGB8822C GE30RGB8822D |
5000*10*2.5 5000*10*3.0 5000*12*3.5 5000*12*4.0 |
IP21 IP65 IP67 IP68 |
DC5V | SMD5050RGB | GE8822 Built-in |
30 | 30 | R:80lm G:156lm B:64lm Mix W:250lm |
120 | 9w |
| GE48RGB8822A GE48RGB8822B GE48RGB8822C GE48RGB8822D |
5000*10*2.5 5000*10*3.0 5000*12*3.5 5000*12*4.0 |
IP21 IP65 IP67 IP68 |
DC5V | SMD5050RGB | GE8822 Built-in |
48 | 48 | R:128lm G:250lm B:100lm Mix W:296lm |
120 | 14.4w |
| GE60RGB8822A GE60RGB8822B GE60RGB8822C GE60RGB8822D |
5000*10*2.5 5000*10*3.0 5000*12*3.5 5000*12*4.0 |
IP21 IP65 IP67 IP68 |
DC5V | SMD5050RGB | GE8822 Built-in |
60 | 60 | R:160lm G:312lm B:128lm Mix W:500lm |
120 | 18.0w |
| GE72RGB8822A GE72RGB8822B GE72RGB8822C GE72RGB8822D |
5000*12*2.5 5000*12*3.0 5000*14*3.5 5000*14*4.0 |
IP21 IP65 IP67 IP68 |
DC5V | SMD5050RGB | GE8822 Built-in |
72 | 72 | R:194lm G:375lm B:158lm Mix W:590lm |
120 | 21.6w |
| GE96RGB8822A GE96RGB8822B GE96RGB8822C GE96RGB8822D |
2500*12*2.5 2500*12*3.0 2500*14*3.5 2500*14*4.0 |
IP21 IP65 IP67 IP68 |
DC5V | SMD5050RGB | GE8822 Built-in |
96 | 96 | R:250lm G:500lm B:210lm Mix W:806lm |
120 | 28.8w |
| GE144RGB8822A GE144RGB8822B GE144RGB8822C GE144RGB8822D |
1000*12*2.5 1000*12*3.0 1000*14*3.5 1000*14*4.0 |
IP21 IP65 IP67 IP68 |
DC5V | SMD5050RGB | GE8822 Built-in |
144 | 144 | R:380lm G:750lm B:310lm Mix W:1190lm |
120 | 43.2w |
