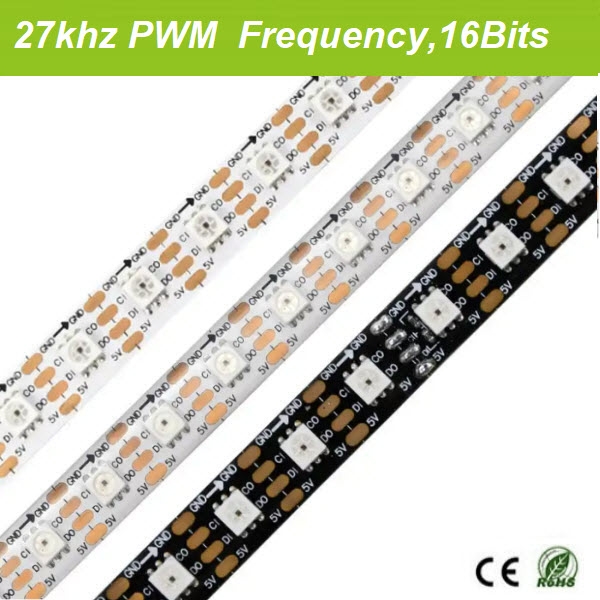

1. APA102HB IC port PWM Scanning Frequency:27khz/s
2. 16bit/color 65536 Grey grade.
3. The Data Rate Max 20Mbps
4. Software and hardware will affect screen refresh rate (FPS) directly.
5. Input Voltage DC5V, Dual signal (Data,Clk) SPI protocol
3. The Data Rate Max 20Mbps
4. Software and hardware will affect screen refresh rate (FPS) directly.
5. Input Voltage DC5V, Dual signal (Data,Clk) SPI protocol
6. 32leds/m,48leds/m,66leds/m,96leds/m,144leds/m available.
7. 31.25mm/1.23",20.8mm/0.82",15.15mm/0.59",10.4mm/0.41",6.9mm/0.27" intervals cutting point
8. White PCB/Black PCB available, IP21/IP65/IP67/IP68 available.
9. Both ends wired with 150mm/5.9" 20Awg wire and JST 4Pin male/female connector
10. 3M adhensive tape stick on the back of non-waterproof version.
11. Controller System：SD controller , DMX controller , Artnet.
Remark: The PCB is compatible with APA102H:8bit/color 256 grayscale. Details Please download datasheet.
Remark: The PCB is compatible with APA102H:8bit/color 256 grayscale. Details Please download datasheet.
| Product Model | ||||||||||
| M/N | Size/mm | IP Rate | Voltage | Grey | IC type | Leds/m | Pixel/m | Lm/m | Angle | Watt/m |
| GE32RGB102HBA GE32RGB102HBB GE32RGB102HBC GE32RGB102HBD |
5000*10*2.5 5000*10*3.0 5000*12*3.5 5000*12*4.0 |
IP21 IP65 IP67 IP68 |
DC5V | 65536 | APA102HB Built-in |
32 | 32 | R:80lm G:156lm B:64lm Mix W:250lm |
120 | 9.6w |
| GE48RGB102HBA GE48RGB102HBB GE48RGB102HBC GE48RGB102HBD |
5000*10*2.5 5000*10*3.0 5000*12*3.5 5000*12*4.0 |
IP21 IP65 IP67 IP68 |
DC5V | 65536 | APA102HB Built-in |
48 | 48 | R:128lm G:250lm B:100lm Mix W:296lm |
120 | 14.4w |
| GE60RGB102HBA GE60RGB102HBB GE60RGB102HBC GE60RGB102HBD |
5000*10/12*2.5 5000*10/12*3.0 5000*12/14*3.5 5000*12/14*4.0 |
IP21 IP65 IP67 IP68 |
DC5V | 65536 | APA102HB Built-in |
60 | 60 | R:160lm G:312lm B:128lm Mix W:500lm |
120 | 18.0w |
| GE66RGB102HBA GE66RGB102HBB GE66RGB102HBC GE66RGB102HBD |
5000*12*2.5 5000*12*3.0 5000*14*3.5 5000*14*4.0 |
IP21 IP65 IP67 IP68 |
DC5V | 65536 | APA102HB Built-in |
66 | 66 | R:176m G:340lm B:140m Mix W:545lm |
120 | 19.8w |
| GE96RGB102HBA GE96RGB102HBB GE96RGB102HBC GE96RGB102HBD |
2500*12*2.5 2500*12*3.0 2500*14*3.5 2500*14*4.0 |
IP21 IP65 IP67 IP68 |
DC5V | 65536 | APA102HB Built-in |
96 | 96 | R:250lm G:500lm B:210lm Mix W:806lm |
120 | 28.8w |
| GE144RGB102HBA GE144RGB102HBB GE144RGB102HBC GE144RGB102HBD |
1000*12*2.5 1000*12*3.0 1000*14*3.5 1000*14*4.0 |
IP21 IP65 IP67 IP68 |
DC5V | 65536 | APA102HB Built-in |
144 | 144 | R:380lm G:750lm B:310lm Mix W:1190lm |
120 | 43.2w |
