5V IC built-in led strip

digital led strip ws2813

    1. Input Voltage DC5V, single signal (Data) control. Protocol compatible with WS2811.

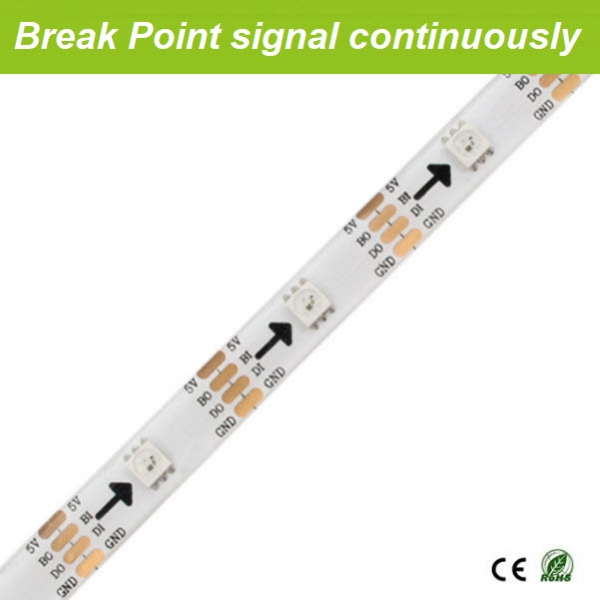

    2. Signal breakpoint transmission, any fault pixel won‘t affect signal transmission ,unless two consecutive adjacent fault LED.
    3. WS2813 IC embedded in SMD5050 RGB LED. Each led is programmable.

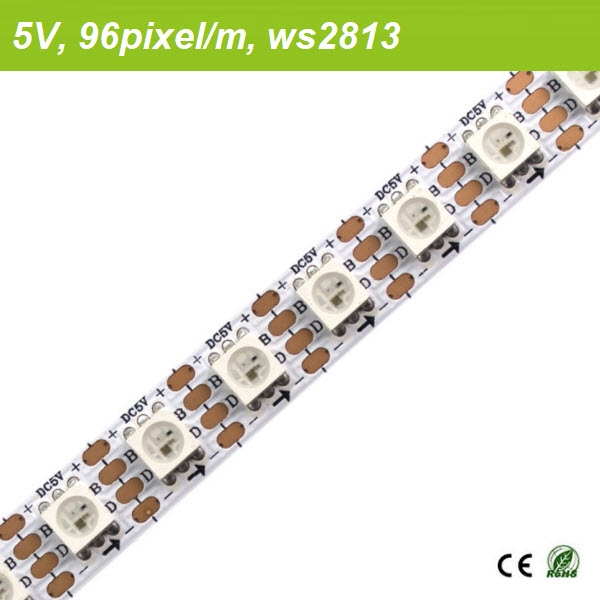

    4. 30leds/m,60leds/m,72leds/m,96leds/m,144leds/m available.

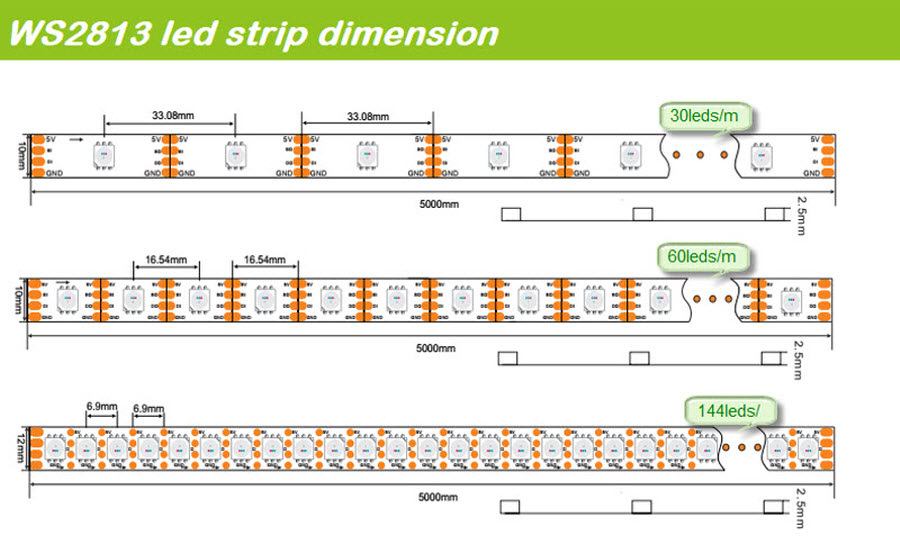

    5. 33.3mm/1.31",16.6mm/0.65",13.88mm/0.55",10.4mm/0.41",6.9mm/0.27" intervals cutting point
    6. White PCB/Black PCB available, IP21/IP65/IP67/IP68 available.
    7. Both ends wired with 150mm/5.9" 20Awg wire and JST 4Pin male/female connector
    8. 3M adhensive tape stick on the back of non-waterproof version.
    9. Controller System:SD controller , DMX controller , Artnet.
    10. Only DI wired to controller‘ data . BI is for the chip‘s breakpoint resume function when we resolder PCB

    Product Model
    M/N Size/mm IP Rate Voltage Led type IC type Leds/m Pixel/m Luminous/m Angle Watt/m
    GE30RGB2813A
    GE30RGB2813B
    GE30RGB2813C
    GE30RGB2813D
    5000*10*2.5
     5000*10*3.0    5000*12*3.5
    5000*12*4.0
     IP21
        IP65
     IP67
     IP68
    DC5V SMD5050RGB WS2813
    Built-in
    30 30 R:75lm
        G:150lm     B:60lm
     Mix W:240lm
    120 9w
    GE60RGB2813A
    GE60RGB2813B
    GE60RGB2813C
    GE60RGB2813D
    5000*10*2.5
     5000*10*3.0    5000*12*3.5
    5000*12*4.0
     IP21
        IP65
     IP67
     IP68
    DC5V SMD5050RGB WS2813
    Built-in
    60 60 R:150lm
    G:300lm   B:120lm
     Mix W:480lm
    120 18.0w
    GE72RGB2813A
    GE72RGB2813B
    GE72RGB2813C
    GE72RGB2813D
    5000*12*2.5
     5000*12*3.0    5000*14*3.5
    5000*14*4.0
        IP21        IP65
    IP67
    IP68
    DC5V SMD5050RGB WS2813
    Built-in
    72 72 R:180lm
    G:360lm   B:144lm
     Mix W:570lm
    120 21.6w
    GE96RGB2813A
    GE96RGB2813B
    GE96RGB2813C
    GE96RGB2813D
    2500*12*2.5
     2500*12*3.0    2500*14*3.5
    2500*14*4.0
     IP21
        IP65
     IP67
     IP68
    DC5V SMD5050RGB WS2813
    Built-in
    96 96 R:240lm
    G:480lm   B:192lm
     Mix W:775lm
    120 28.8w
    GE144RGB2813A
    GE144RGB2813B
    GE144RGB2813C
    GE144RGB2813D
     1000*12*2.5
      1000*12*3.0    1000*14*3.5   1000*14*4.0
     IP21
        IP65
     IP67
     IP68
    DC5V SMD5050RGB WS2813
    Built-in
    144 144 R:360lm
    G:720lm   B:288lm
     Mix W:1150lm
    120 43.2w
