24V Digital led strip

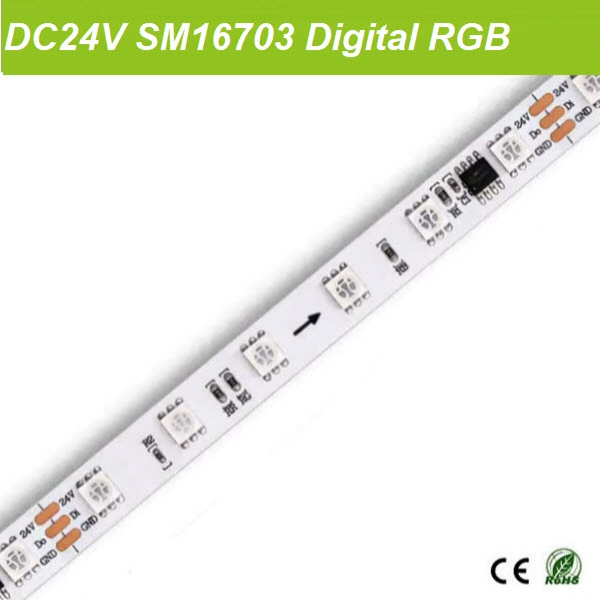

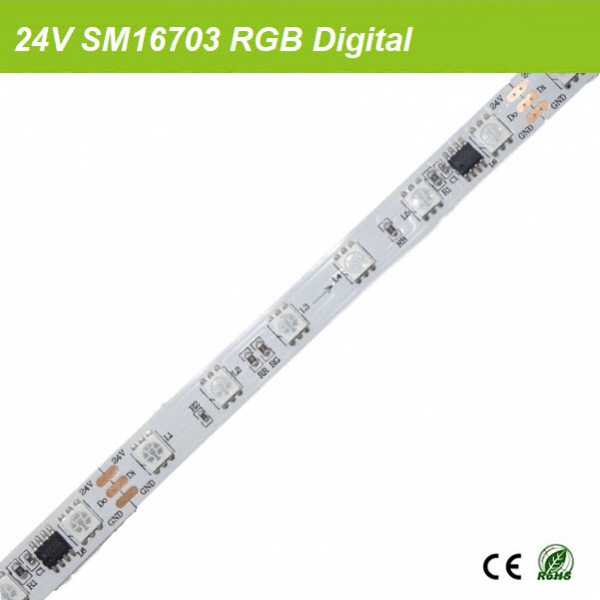

24V SM16703 programmable strip

    1. Input Voltage DC24V, single signal (data) control.

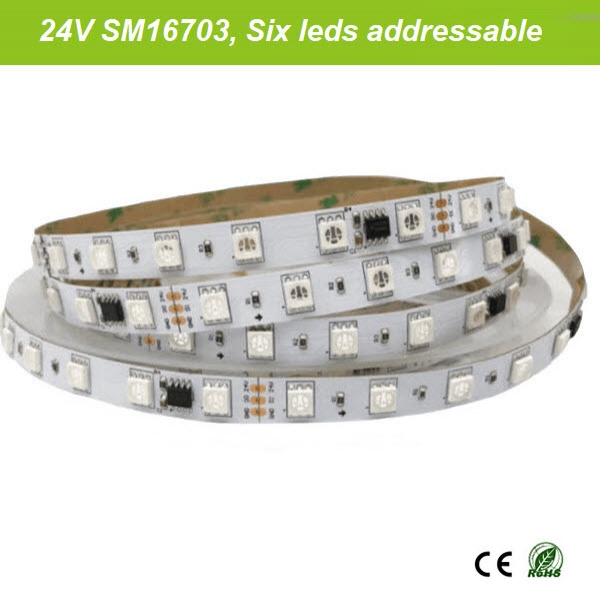

    2. External SM16703 IC control, each six leds are programmable.
    3. 48leds/m,60leds/m available,SMD5050,RGB color.
    4. 125mm/4.92",100mm/3.94"intervals cutting point
    5. White PCB/Black PCB available. IP21/IP65/IP67/IP68 available.
    6. Both ends wired with 150mm/5.9" 20Awg wire and JST 3Pin male/female connector
    7. 3M adhensive tape stick on the back of non-waterproof version.
    8. Controller System:SD controller , DMX controller , Artnet.

    Product Model
    M/N Size/mm IP Rate Voltage Led type IC type Leds/m Pixel/m Luminous/m Angle Watt/m
    GE48RGB16703A24
    GE48RGB16703B24
    GE48RGB16703C24
    GE48RGB16703D24
    5000*12*3.0
     5000*12*3.5    5000*14*4.0
    5000*14*4.0
     IP21
       IP65
     IP67
     IP68
    DC24V SMD5050RGB SM16703
    External
    48 8  R: 144lm
    G:288lm   B:105lm
    Mix W:480lm
    120 11.52w
    GE60RGB16703A24
    GE60RGB16703B24
    GE60RGB16703C24
    GE60RGB16703D24
    5000*12*3.0
     5000*12*3.5    5000*14*4.0
    5000*14*4.0
     IP21
       IP65
     IP67
     IP68
    DC24V SMD5050RGB SM16703
    External
    60 10 R: 180lm
     G:360lm    B:132lm
    Mix W:600lm
    120 14.4w

    Dimension


    File Name : Format: Size: Download:
